Intel
®
Server Board S5400SF TPS Power and Environmental Specifications
Revision 2.02
Intel order number: D92944-007
149
Table 90. Output Voltage Timing
Item Description Minimum Maximum Units
T
vout_rise
Output voltage rise time from each main output. 5.0 70
1
msec
T
vout_on
All main outputs must be within regulation of each
other within this time.
50 msec
T
vout_off
All main outputs must leave regulation within this
time.
700 msec
Note:
1. The 5VSB output voltage rise time should be from 1.0 ms to 25.0 ms.

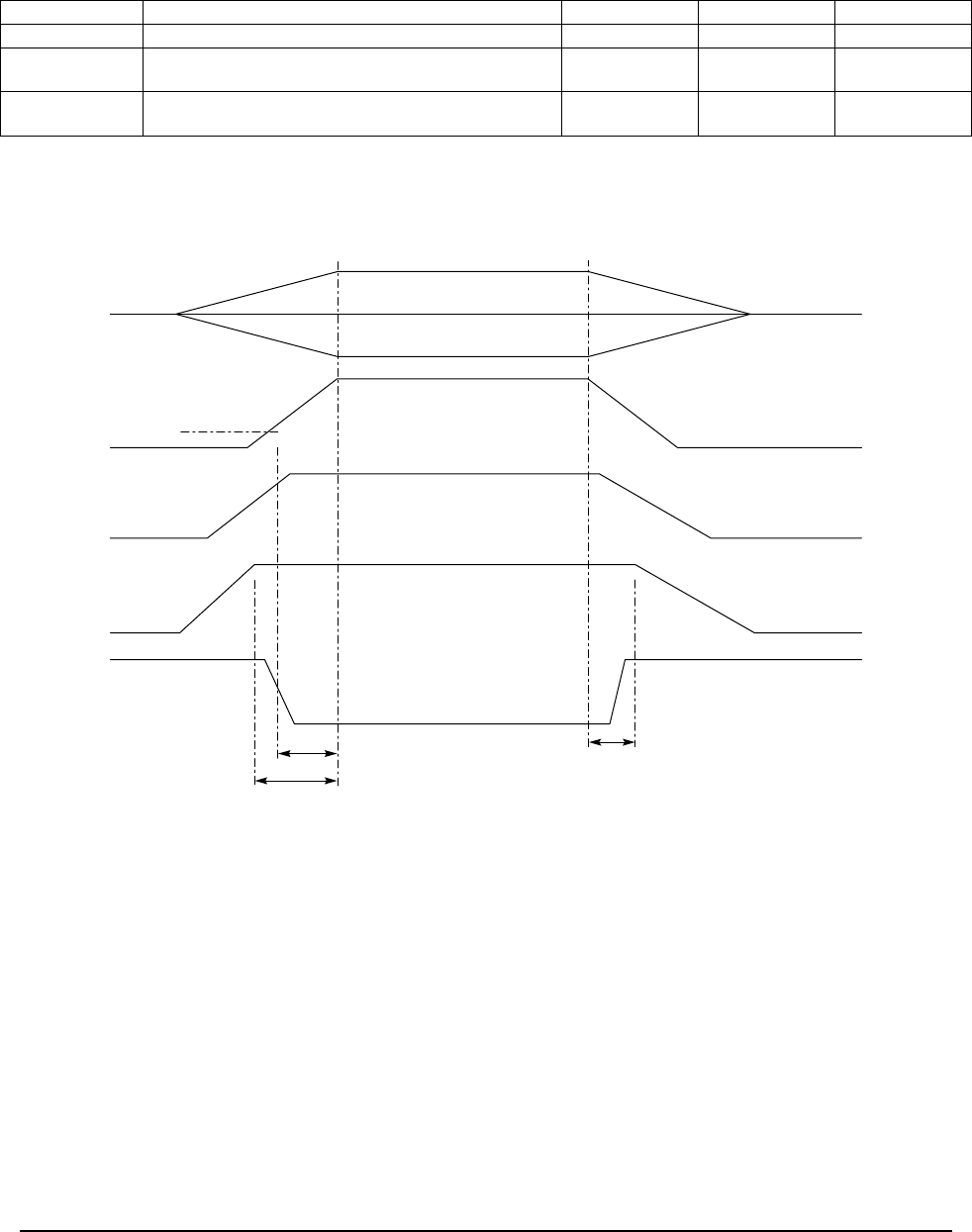

Figure 52. Output Voltage Timing
AF002179
V
out
V1
V2
V3
V4
T
vout_on
T
vout_rise
10% V
out
T
vout_off
