8.2 System ID LED and System Status LED
The server board provides LEDs for both System ID and System Status.
AF002174
System ID
LED (Blue)
Status LED
(Green/Amber)

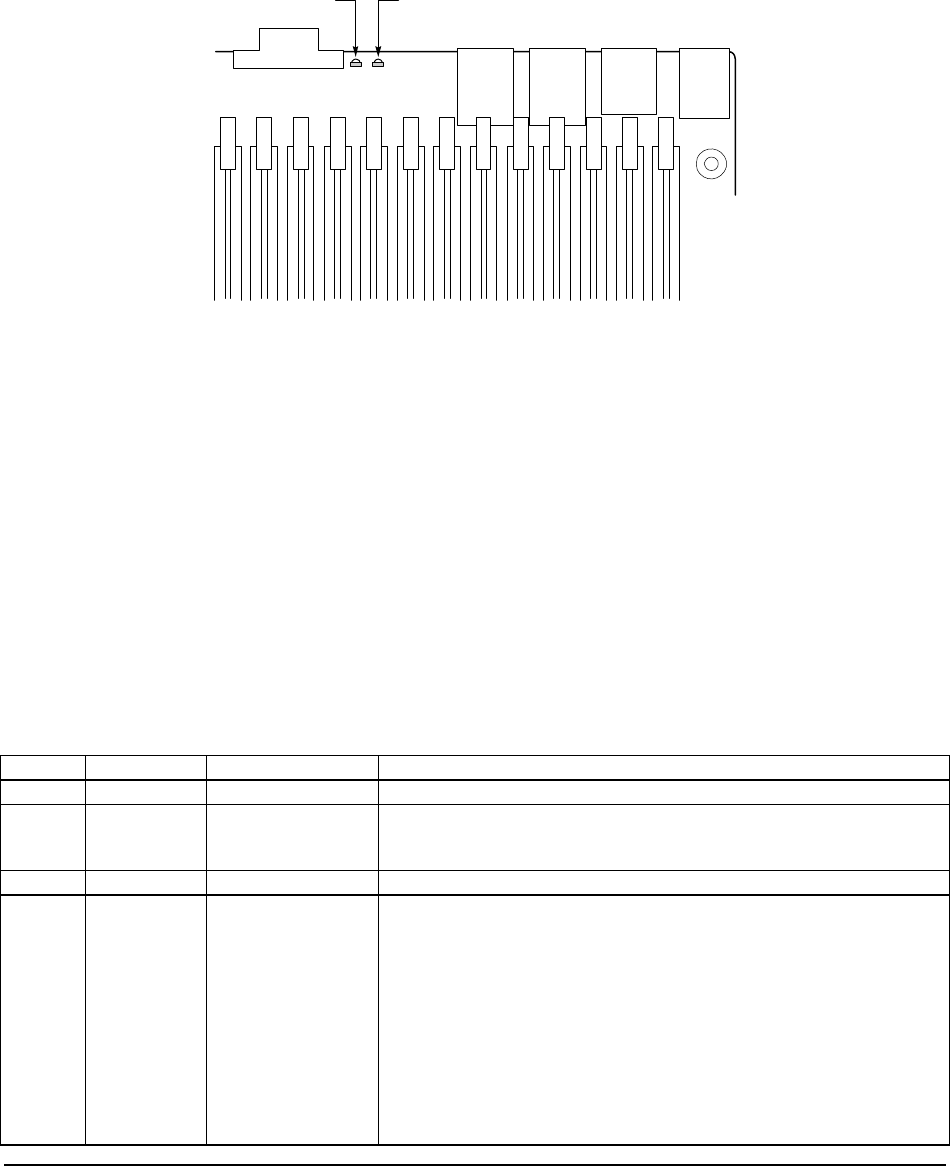

Figure 47. System ID LED and System Status LED Locations.
The blue “System ID” LED can be illuminated using one of the following mechanisms:
By pressing the system ID button on the system control panel, the ID LED displays a
solid blue color until the button is pressed again.
By issuing the appropriate hex IPMI “Chassis Identify” value, the ID LED either blinks
blue for 15 seconds and turns off or blinks indefinitely until the appropriate hex IPMI
Chassis Identify value is issued to turn it off.
The bi-color System Status LED operates as described in the following table:
Table 81. System Status LED Operation
Color State Criticality Description
Off N/A Not ready AC power off
Green/
Amber
Alternating
Blink
Not ready Pre DC Power On – 15-20 second Integrated BMC Initialization
when AC is applied to the server. Control Panel buttons are disabled
until Integrated BMC initialization is completed.
Green Solid on System OK System booted and ready.
Green Blink Degraded System degraded:
1. Unable to use all of the installed memory (more than one DIMM
installed).
2. Correctable errors over a threshold of ten and migrating to a
spare DIMM (memory sparing). This indicates that the user no
longer has spare DIMMs indicating a redundancy lost condition.
The corresponding DIMM LED should light up.
3. In a mirrored configuration, when memory mirroring takes place
and system loses memory redundancy. This is not covered by
(2).
4. Redundancy loss such as power supply or fan. This does not
