Jumper Block Settings Intel
®
Server Board S5400SF TPS
Revision 2.02
Intel order number: D92944-007
136
AF002171
3
BIOS Select
1-2: Force
Lower Bank
2-3: Normal
Operation (Default)
3
J3H1

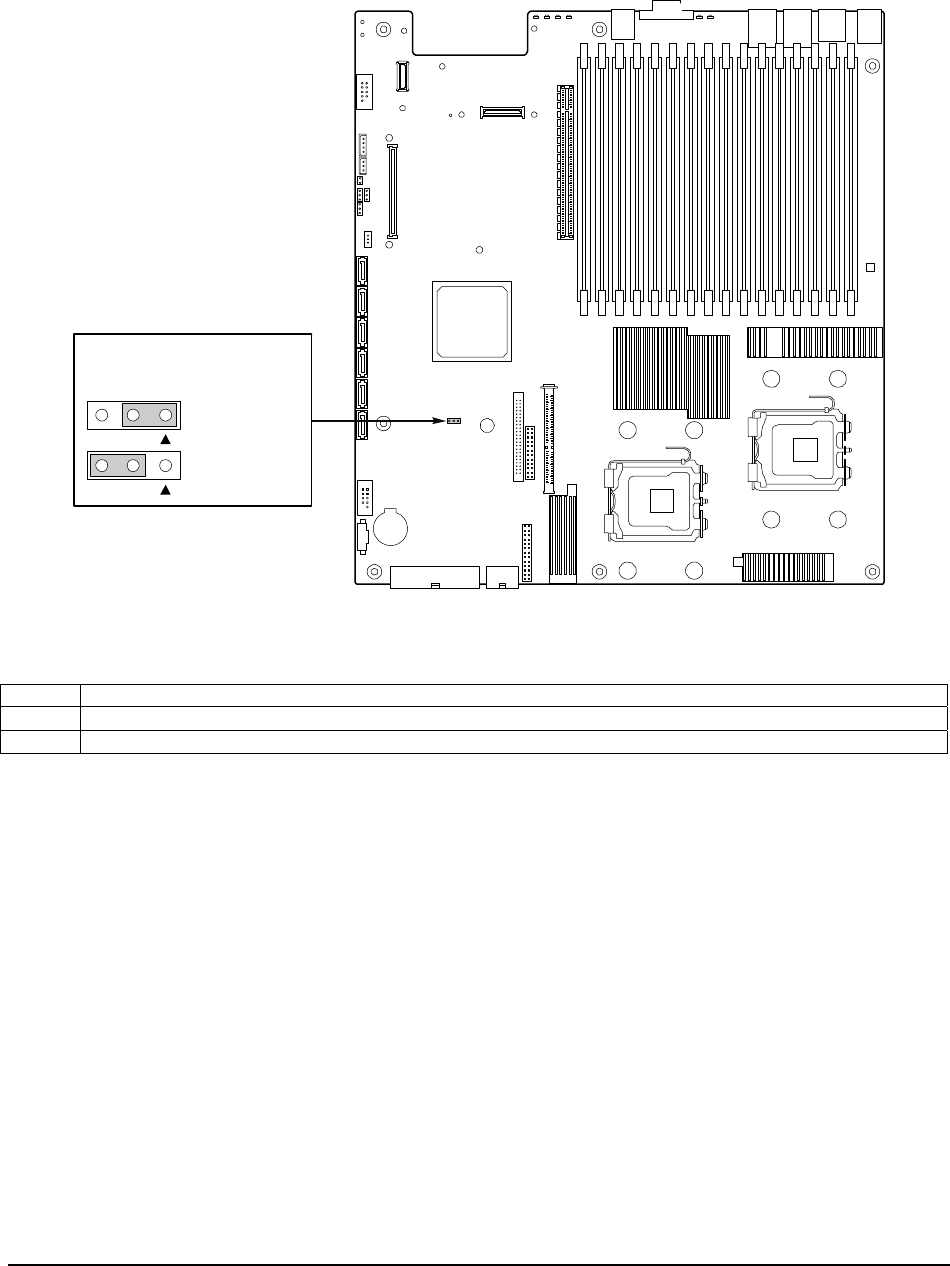

Figure 44. BIOS Select Jumper (J3H1)
Pins At system reset
1-2 Force BIOS to bank 0
2-3 System is configured for normal operation (Default)
Note:
1. When performing the BIOS update procedure, the BIOS select jumper must be set to its default position (pins
2-3).
