Intel
®
Server Board S5400SF TPS Jumper Block Settings
Revision 2.02
Intel order number: D92944-007
133
7. Jumper Block Settings
The server board has several 2-pin and 3-pin jumper blocks that can be used to configure,
protect, or recover specific features of the server board. Pin 1 on each jumper block is denoted
by an “*” or “▼”.
7.1 Recovery Jumper Blocks
Table 80. Recovery Jumpers
Jumper Name Pins At system reset
1-2
Integrated BMC Firmware Force Update Mode – Disabled (Default)
BMC Force
Update
2-3 Integrated BMC Firmware Force Update Mode – Enabled
1-2
These pins should have a jumper in place for normal system operation. (Default)
Password Clear
2-3 If these pins are jumpered, administrator and user passwords are cleared immediately.
These pins should not be jumpered for normal operation.
1-2
These pins should have a jumper in place for normal system operation. (Default)
CMOS Clear
2-3 If these pins are jumpered, the CMOS settings are cleared immediately. These pins
should not be jumpered for normal operation.

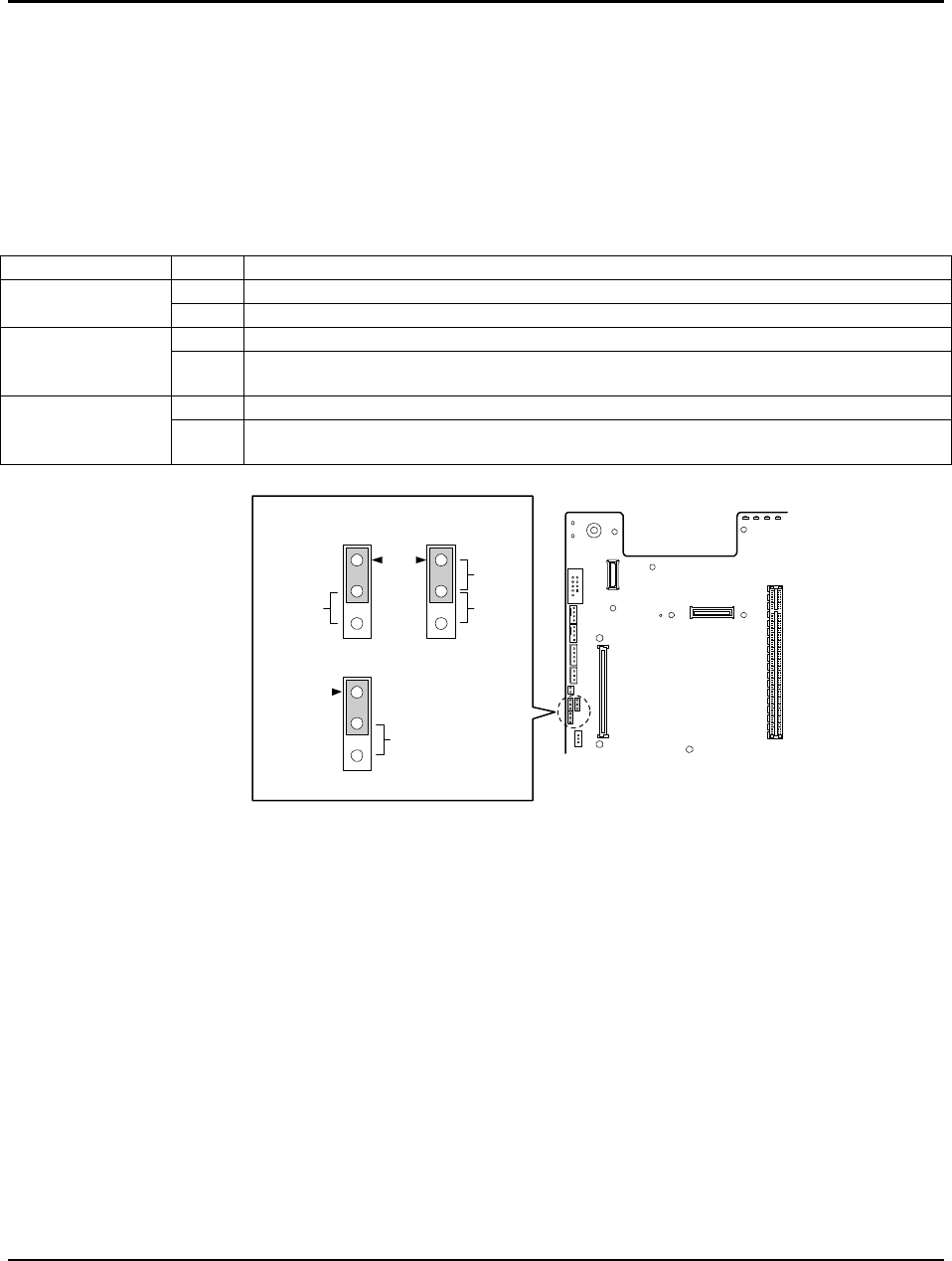

Figure 43. Recovery Jumper Blocks
AF002170
3
2
Disable
Enable
3
2
CMOS
Clear
3
2
BMC Force
Update Mode
Password
Reset
