Connector/Header Locations and Pin-outs Intel
®
Server Board S5400SF TPS
Revision 2.02
Intel order number: D92944-007
132
Pin Definition Pin # Pin Definition
LED_FAN4_FAULT 13 14 LED_FAN5_FAULT
FAN_TACH1_H7 15 16 FAN_TACH2_H7
FAN_TACH3_H7 17 18 FAN_TACH4_H7
FAN_TACH5 19 20 FAN_TACH6
FAN_TACH7 21 22 FAN_TACH8
PCI_FAN_TACH9 23 24 CONN_PIN24_R
PCI_FAN_TACH10 25 26 FM_SIO_TEMP_SENSOR
Note: Intel Corporation server boards support peripheral components and contain a number of
high-density VLSI and power delivery components that need adequate airflow to cool. Intel’s
own chassis are designed and tested to meet the intended thermal requirements of these
components when the fully integrated system is used together. It is the responsibility of the
system integrator that chooses not to use Intel developed server building blocks to consult
vendor datasheets and operating parameters to determine the amount of airflow required for
their specific application and environmental conditions. Intel Corporation cannot be held
responsible if components fail or the server board does not operate correctly when used outside
any of their published operating or non-operating limits
6.9 Chassis Intrusion Switch Header
For systems that require chassis intrusion detection, the server board provides a 2-pin chassis
intrusion switch header. The header is located above the password clear jumper on the edge of
the server board.

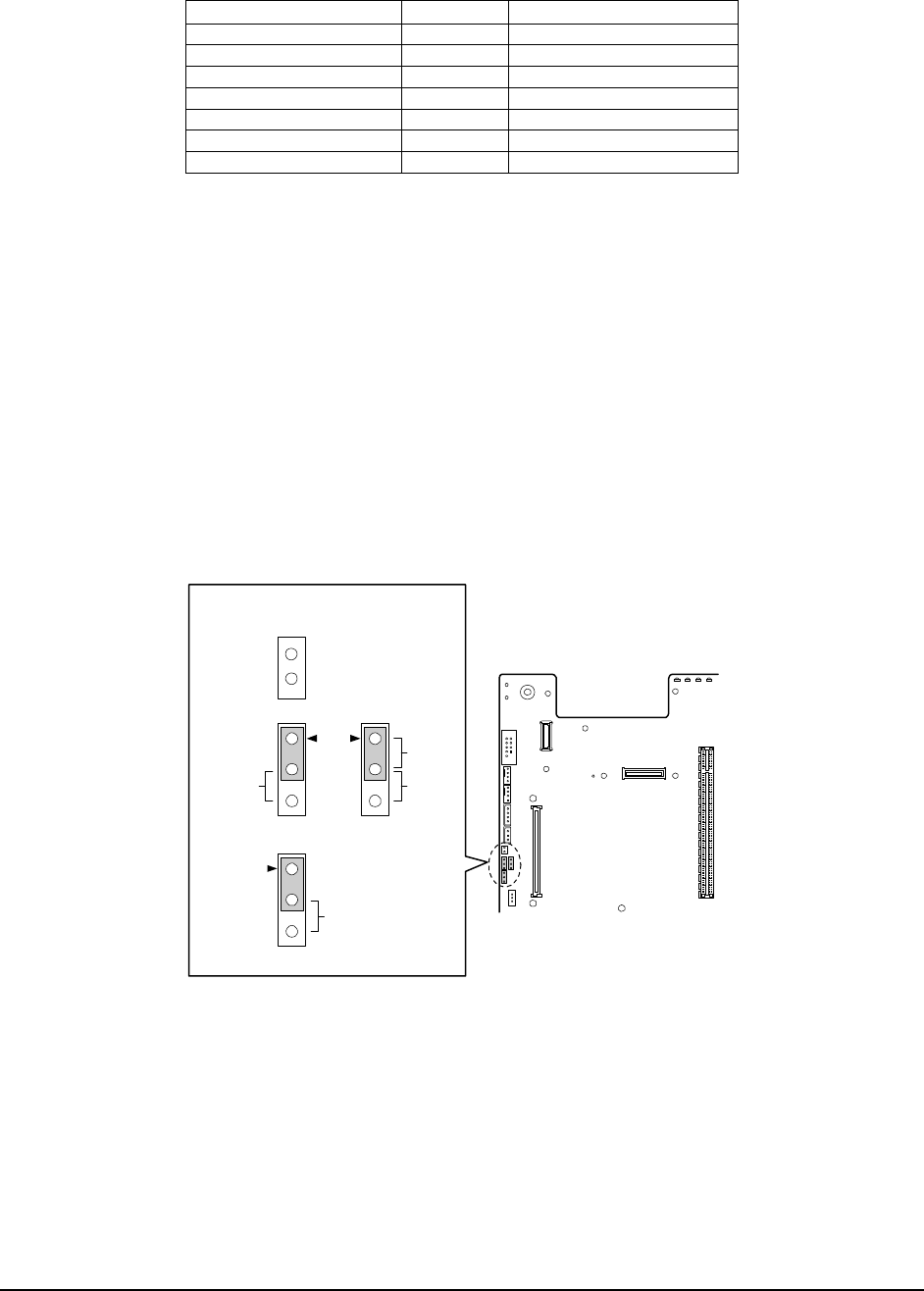

Figure 42. Chassis Intrusion Switch Header Location
The Integrated BMC monitors the state of the Chassis Intrusion signal and makes the status of
the signal available via the Get Chassis Status command and the Physical Security sensor state.
If enabled, a chassis intrusion state change causes the Integrated BMC to generate a Physical
Security sensor event message with a General Chassis Intrusion offset (00h).
AF002385
3
2
Disable
Enable
3
2
CMOS
Clear
3
2
BMC Force
Update Mode
Password
Reset
Chassis
Intrusion
