Reference

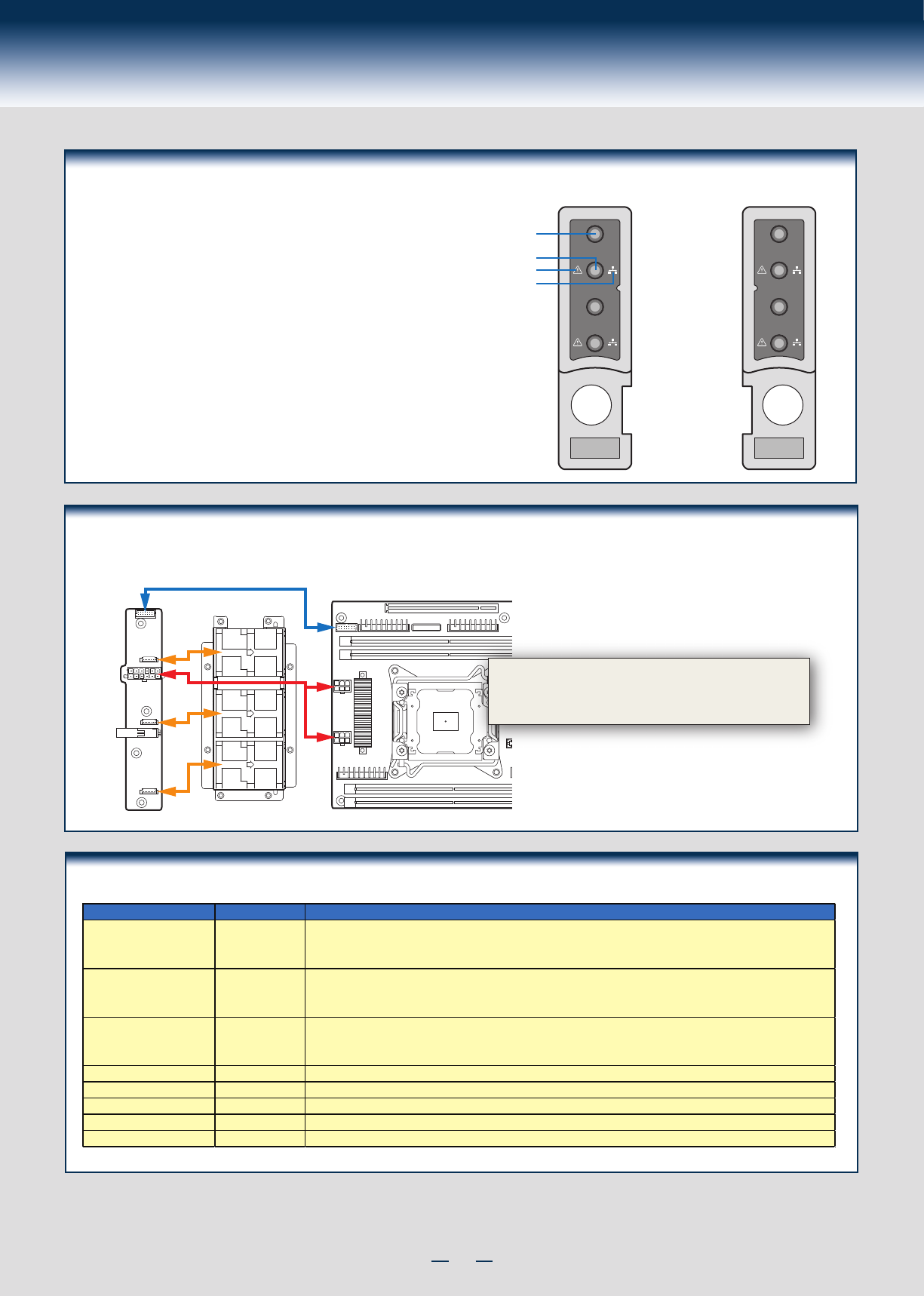

Front Panel Controls and Indicators
Standard Control Panel
Your system may include one of two front control panel types.The
features of each are as follows:
A. System Power Button with LED
B. System ID Button
C. System Status LED
D. Network Link/Activity LED
NODE 4
NODE 2
NODE 3
NODE 1
A
C
D
B
A complete list of accessories and spares can be found at http://www.intel.com/p/en_US/support. (post-production only)
Optional Accessories
Product Code MM# Description
HNS2600JF 918336
Intel Server Board S2600JF; Intel Node Power Board; Intel Bridge Board; 1U PCI Express Low Profile Riser;
1U Cu/Al 91mmx91mm Heat Sink; 1U Ex-Al 91mmx91mm Heat Sink; Three 4056 Dual Rotor Fan; Power
Cable, Airduct; 1U Node Tray; Fan Control Signal Cable; No InfiniBand on board
HNS2600JFQ 918335
Intel Server Board S2600JFQ; Intel Node Power Board; Intel Bridge Board; 1U PCI Express Low Profile
Riser; 1U Cu/Al 91mmx91mm Heat Sink; 1U Ex-Al 91mmx91mm Heat Sink; Three 4056 Dual Rotor Fan;
Power Cable, Airduct; 1U Node Tray; Fan Control Signal Cable; InfiniBand QDR port on board
HNS2600JFF 921301
Intel Server Board S2600JFF; Intel Node Power Board; Intel Bridge Board; 1U PCI Express Low Profile Riser;
1U Cu/Al 91mmx91mm Heat Sink; 1U Ex-Al 91mmx91mm Heat Sink; Three 4056 Dual Rotor Fan; Power
Cable, Airduct; 1U Node Tray; Fan Control Signal Cable; InfiniBand FDR port on board
H2312XXJR 919020 12 x 3.5" HDD bay chassis only, with 2 x 1200W PSU and 4 blank node fillers
H2216XXJR 919021 16 x 2.5" HDD bay chassis only, with 2 x 1200W PSU and 4 blank node fillers
H2312XXKR 919022 12 x 3.5" HDD bay chassis only, with 2 x 1600W PSU and 4 blank node fillers
H2216XXKR 919023 16 x 2.5" HDD bay chassis only, with 2 x 1600W PSU and 4 blank node fillers
AXXRMM4IOM 918249 PCI Express x16 rIOM Riser; RMM4/rIOM carrier board
Cable Routing inside Server System H2000JF Node Tray
Yellow Lines: Fan cable connection
Red Line: Mother board power cable connection
Blue line: Fan control signal cable connection
