General Installation Process
Intel® Server Chassis H2000 Assembly and Disassembly
* 3.5" Hard Drive Bay system as shown
Assembling the Server System with Server Chassis H2000

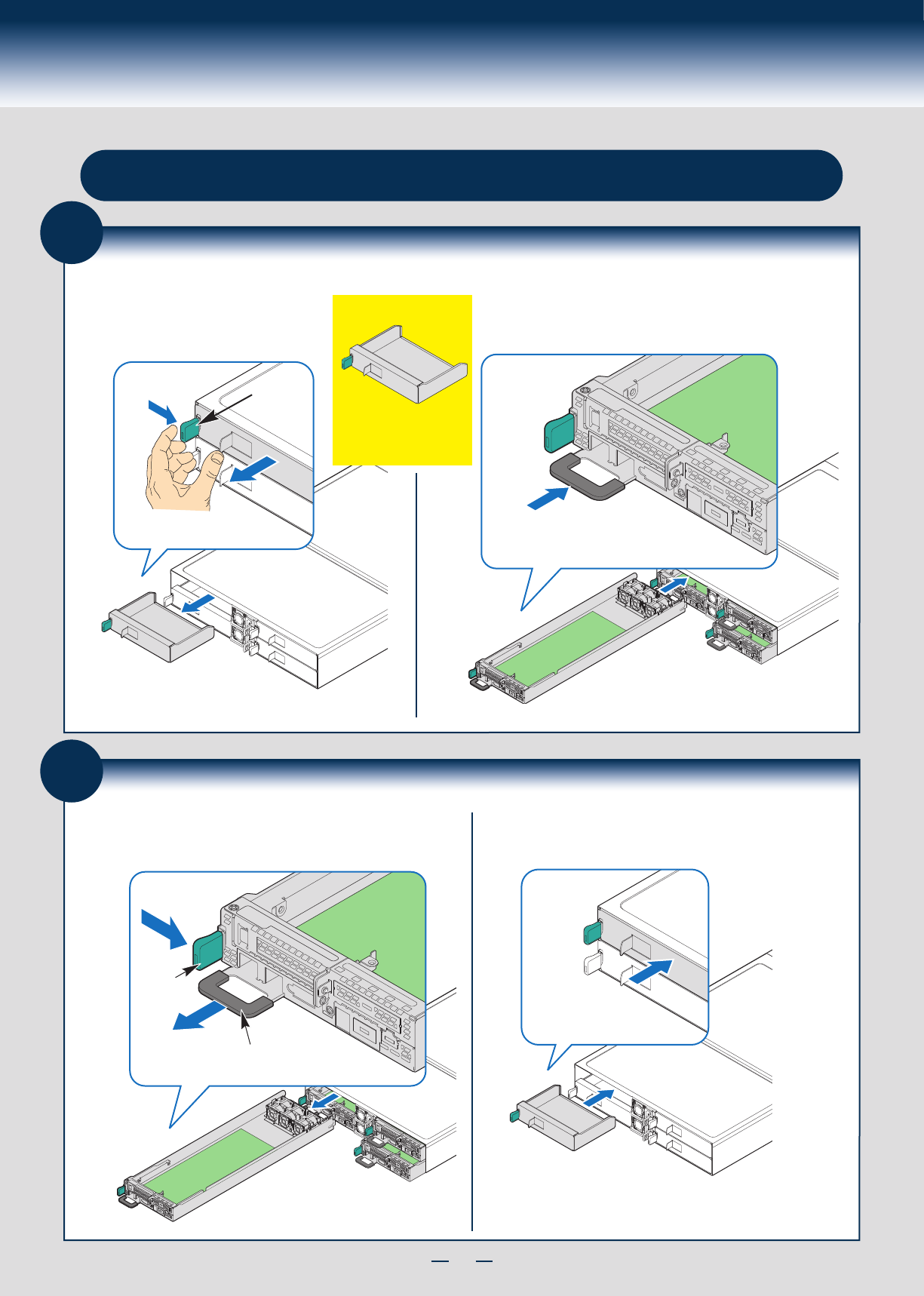

A. Removing the Node Dummy Tray B. Inserting the Node Tray
Latch
Server
Board
Server
Board
Server
Board
Server
Board
Server
Board
Node Dummy Tray
Always keep dummy trays
in all empty node slots for
thermal purpose.
18
Removing a Node Tray from a Chassis
Server
Board
Server
Board
Server
Board
Server
Board
Server
Board
Handle
Latch
A. Removing the Node Tray B. Inserting the Dummy Tray back
