Quick Install Guide

8

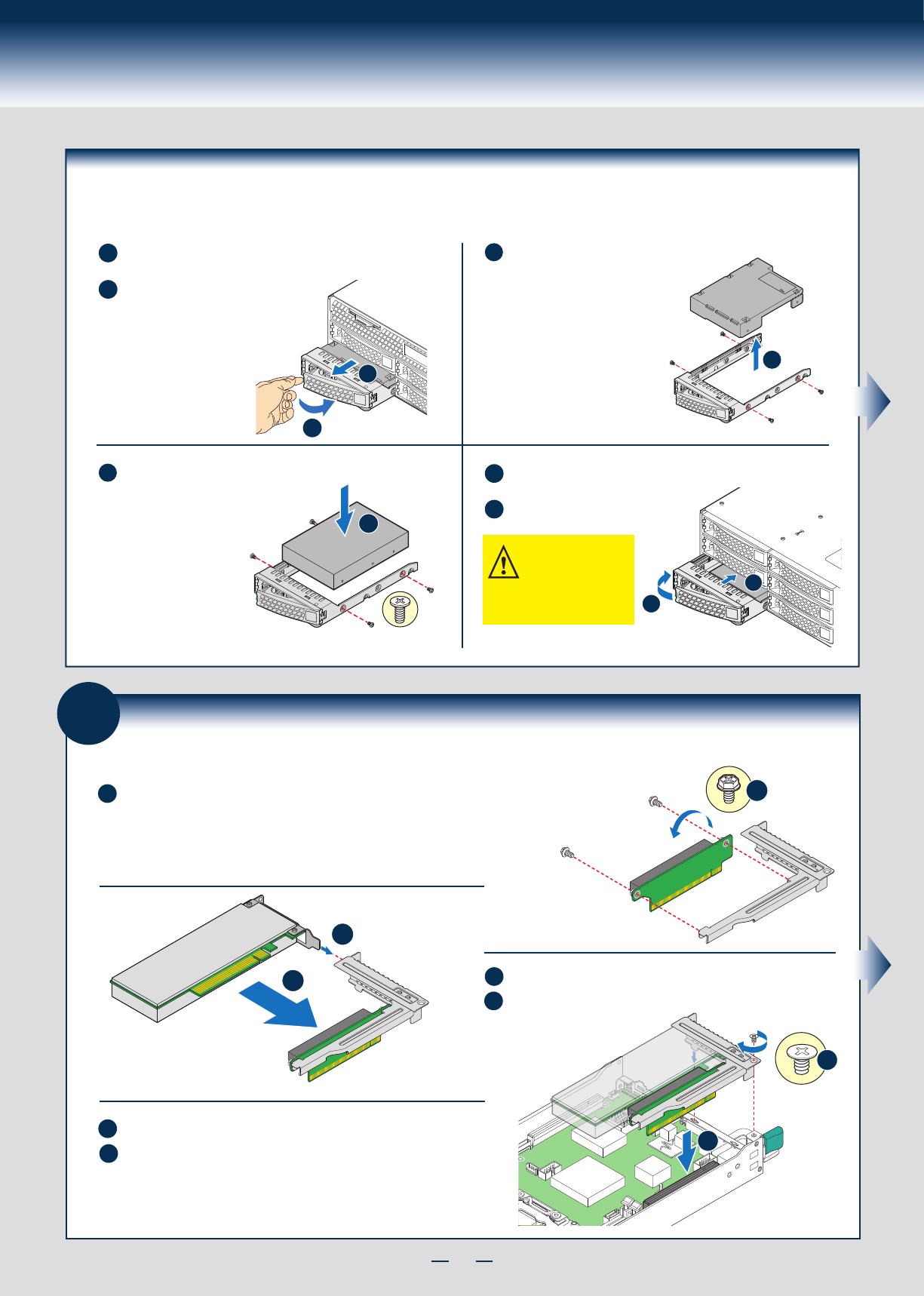

General Installation Process
Install Hard Drives ... Continued
3.5" Hard Drive Carrier (For system with 3.5" hard drive bay only)
A
B
TOP
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
A
B
Remove the drive carrier by pressing the green button
and opening the lever.
E
F
Slide the carrier out.
TOP
BREAK OFF TAB
BEFORE MOUTING
2.5´´ HARD DRIVE
C
C
Remove the four screws securing the
HDD interface bracket and remove the
HDD interface bracket.
3.5´´ HDD
D
D
Install the hard disk drive using the same
four screws as shown. Make sure the
connector end of the drive matches the
backplane connector.
With the lever open, insert the hard disk drive assembly into
the chassis.
Push in the lever to lock it into place.
CAUTION: If you don't install
all drives, empty drive bays
must be occupied by carriers
with plastic drive blank
provided to maintain proper
system cooling.
F
E
11
A
B
C
Install the riser to bracket by fastening screws in below drawings.
Insert add-in card until it seats in the riser connector.
Install the bracket assembly into the chassis with a screw.
E
Install the bracket assembly into the chassis with a screw.
D
Slide the card guide horizontally to lock in the back edge of the add-in card.
To remove the PCI Add-in Card from Riser Slot 1: Perform the five steps in reverse.
Installing PCI Riser Assembly and Add-in Card on Riser Slot 1
A
B
C
Add-in Card
E
OPEN 1st
CLOSE 1st
Add-in Card
D
