Intel RAID RS2 and RS25 Family Product lists and configuration guide

17

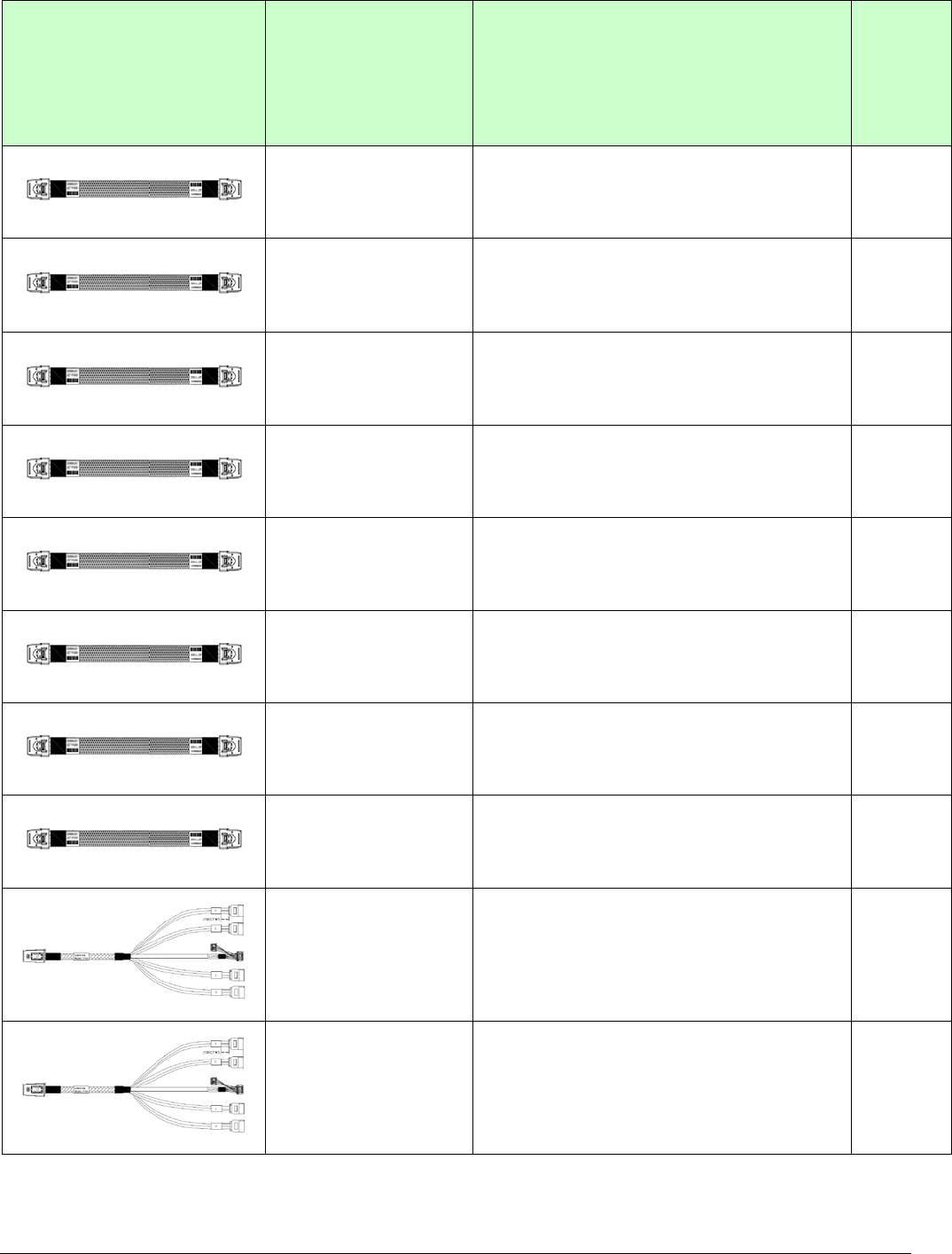

NOTE: In the following
images, straight connectors
and right-angel connectors
are not clearly shown.
Product Code
MM
UPC
Description
Minimum
Order
Quantity
AXXCBL500MSMS
921055
00735858245289
Each set provides two 500mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL600MSMS
921048
00735858245272
Each set provides two 600mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL650MSMS
918376
00735858224444
Each set provides two 650mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
5
AXXCBL730MSMS
921049
00735858245340
Each set provides two 730mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL585MSMR
921047
00735858245265
Each set provides two 585mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL770MSMR
921044
00735858245241
Each set provides two 770mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL550MRMR
921043
00735858245227
Each set provides two 550mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL730MRMR
921045
00735858245234
Each set provides two 730mm cables with
four port mini-SAS 8087 connectors on both
ends. The 8-pin side-band SGPIO physical
connection is embedded.
1
AXXCBL740MS7P
914239
00735858220743
Each set provides two 740mm cables with a
four port Mini-SAS 8087 connector on one
end and four 7-pin SATA style pins on the
other end. The 8-pin side-band SGPIO cable
with a “Y type” header (one with 4-pin and
one with 5-pin) is included.
5
AXXCBL850MS7R
921114
00735858245371
Each set provides two 850mm cables with a
four port Mini-SAS 8087 connector on one
end and four 7-pin SATA style pins on the
other end. The 8-pin side-band SGPIO cable
with a “Y type” header (one with 4-pin and
one with 5-pin) is included.
1
