Intel® Integrated RAID Module RMT3PB080 and RMT3CB080 Hardware User’s Guide 15
3 Intel
®
Integrated RAID Module
RMT3PB080 and RMT3CB080
Characteristics

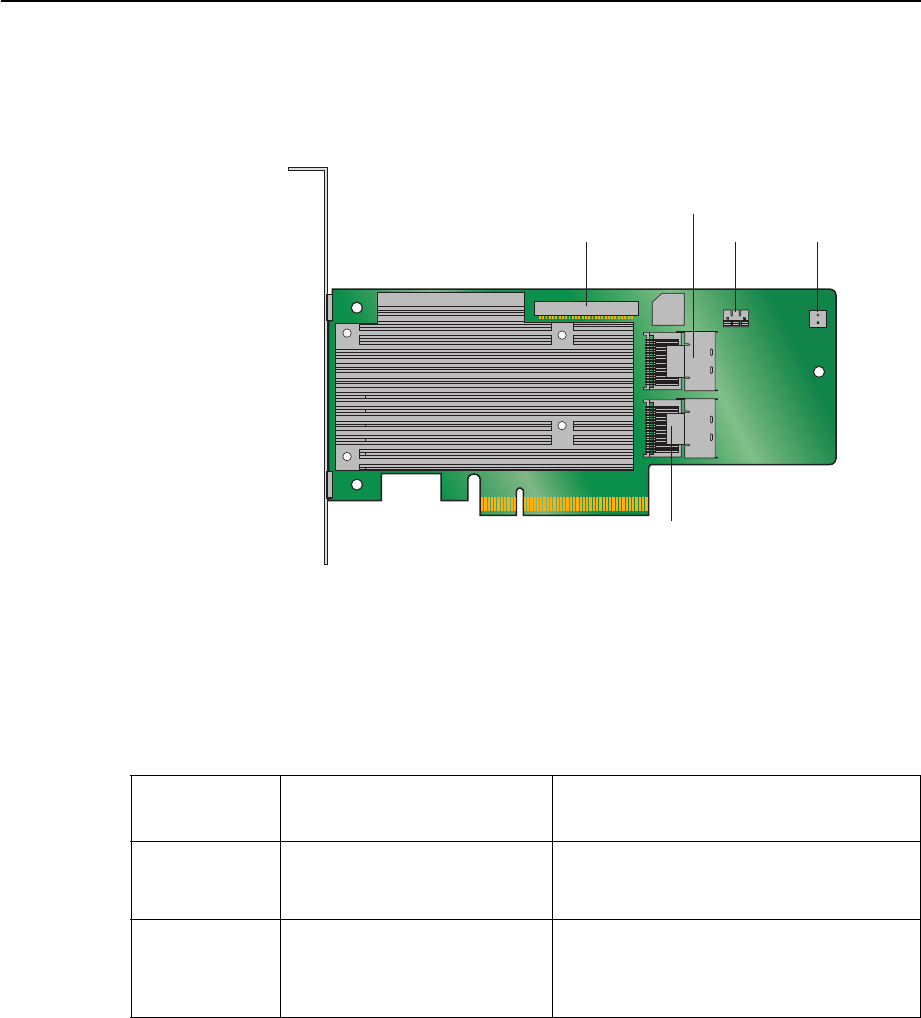

Figure 7. RMT3PB080 Card Layout
Table 1. RMT3PB080 Jumper Description
s
Jumper/
Connector
Type Description
J4A1 Board-to-board connector for
Battery Backup Unit
30-pin connector provides an interface to
the daughter card that contains the battery
backup unit.
J6A2 Activity LED header 2-pin connector connects to an LED that
indicates activity on the drives connected to
the controller.
AF004409
J4A1
J4B1
J4A2
J5A2 J6A2
