Intel® Integrated RAID Module RMT3PB080 and RMT3CB080 Hardware User’s Guide 11

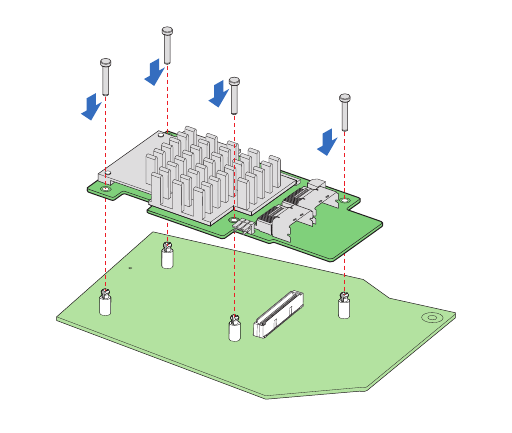

Figure 5. Installing the Intel
®
Integrated RAID Module RMT3CB080
5. Connect the proper cables into the adapter using the 4-port combined end. Make
sure the module and cables are properly attached and plug the cable into connector
at the inside edge of the adapter.
Note: To prevent throughput problems:
✧ Use the cables provided or use the shortest possible cable.
✧ Do not use cables longer than one meter.
✧ Decrease the maximum length by one foot if you are using a backplane.
✧ Do not use cross-over cables.
✧ Only connect to a SATA drive, SAS or SATA backplane, or an
expander device.
✧ Route the cables carefully.
✧ Check that the module and cables are all properly attached.
AF004407
