10 Intel® Integrated RAID Module RMT3PB080 and RMT3CB080 Hardware User’s Guide
6. Install the server system cover and connect the power cords. See your server system
documentation for instructions.
Installing the Intel
®
Integrated RAID Module
RMT3CB080
To install the RAID module, follow these steps:
1. Turn off the power to the system, all drives, enclosures, and system components.
Remove the power cord(s).
2. Remove the server cover. For instructions, see your server system documentation.
3. Insert the four barrel standoffs into the matching holes in the server board. To locate
the matching module card slot on your server board, see your server board
documentation. The Intel
®
Server Board S2600IP is shown for illustrative purpose.
Actual standoff hole locations could be different (see
Figure 1).

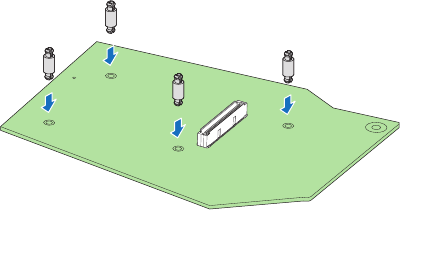

Figure 4. Installing the Barrel Standoff
4. Attach the RAID to the matching server board connector, and press the module card
firmly to engage the barrel standoffs installed in step 3 (see
Figure 3). Press down
gently but firmly to ensure that the card is properly seated in the connectors, and
then insert the four pin standoffs into the barrel standoffs respectively. The Intel
®
RAID Module RMT3CB080 is shown for illustrative purpose (see
Figure 5).
AF004406
