8 Intel® Integrated RAID Module RMT3PB080 and RMT3CB080 Hardware User’s Guide

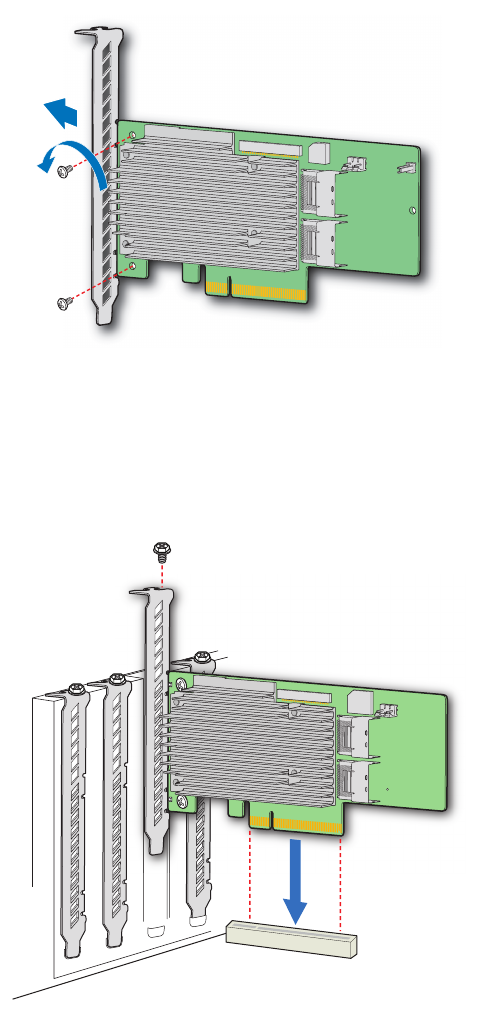

Figure 1. Changing the Bracket
4. Install the RAID module into an available server system x8 or x16 PCI-Express*
slot (see
Figure 2). To locate an appropriate slot and for instructions on installing an
add-in card, see your server system documentation.
Figure 2. Installing the Intel
®
Integrated RAID Module RMT3PB080
5. Connect the proper cables into the adapter using the 4-port combined end. Make
sure the module and cables are properly attached and plug the cable into connector
at the inside edge of the adapter.
AF004411
AF004
411
Full-height
Bracket
AF004412
PCI Express* Slot (3.3 V)
