Intel® Integrated RAID Module RMT3PB080 and RMT3CB080 Hardware User’s Guide 17

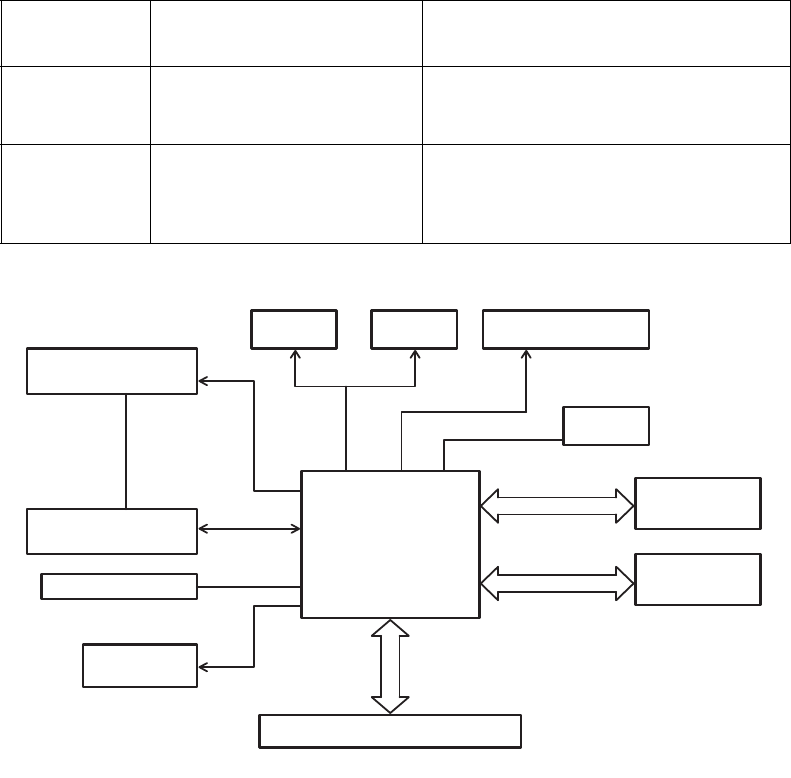

Figure 9. Intel
®
Integrated RAID Module RMT3PB080 Hardware Block
Diagram
J4A1 x4 SAS Ports 0-3 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
J4B2 Advanced Software Hardware
Key Header
3-pin header Enables support for selected
advanced features, such as recovery,
Supersized cache, FastPath, and full disk
encryption.
Jumper/
Connector
Type Description
AF005300
LSI*
SAS2208
6G SAS x4
6G SAS x4
Internal Port 0
miniSAS4
Internal Port 1
miniSAS4
Remote BBU/RMFBU2
Connector
PCIe 3.0 x8
NVRAM FLASH
Buzzer
RAID Feature
Key
512 MB Cache Memory
DDR3-1333
GPIO3
GPIO4
Acvity LED Header
PCI-E* 3.0 x8 (PCI-E Slot)
Boot Strap EEPROM
