16 Intel® Integrated RAID Module RMT3PB080 and RMT3CB080 Hardware User’s Guide

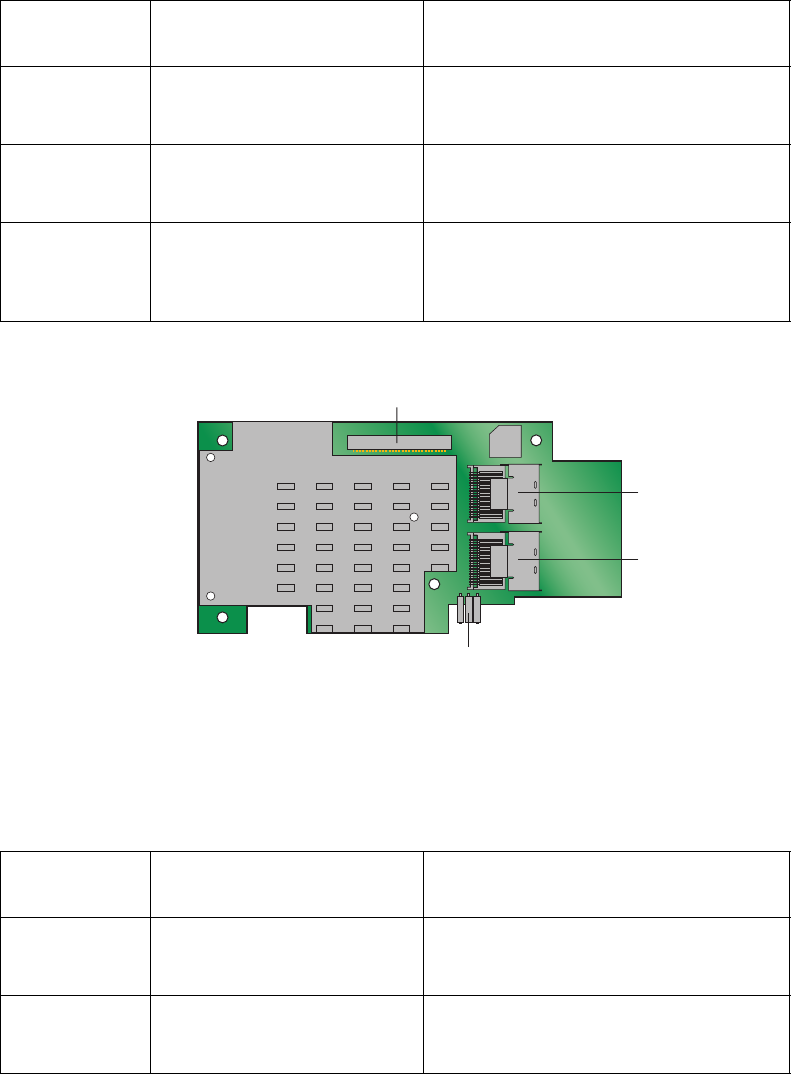

Figure 8. RMT3CB080 Card Layout
Table 2. RMT3CB8080 Jumper Description
J4B1 x4 SAS Ports 4-7 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
J4A2 x4 SAS Ports 0-3 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
J5A2 Advanced Software Hardware
Key Header
3-pin header enables support for selected
advanced features, such as recovery,
Supersized cache, FastPath, and full disk
encryption.
Jumper/
Connector
Type Description
J3A1 Board-to-board connector for
Battery Backup Unit
30-pin connector provides an interface to
the daughter card that contains the battery
backup unit.
J4B1 x4 SAS Ports 4-7 internal
connector
SFF-8087 mini SAS 4i internal connector.
Connects the controller by cable to
SAS/SATA devices.
Jumper/
Connector
Type Description
AF004410
J3A1
J4B1
J4A1
J4B2
