Intel® Server System R2000LH2/T2 Product Family TPS Intel® Local Control Panel
Revision 1.0
75

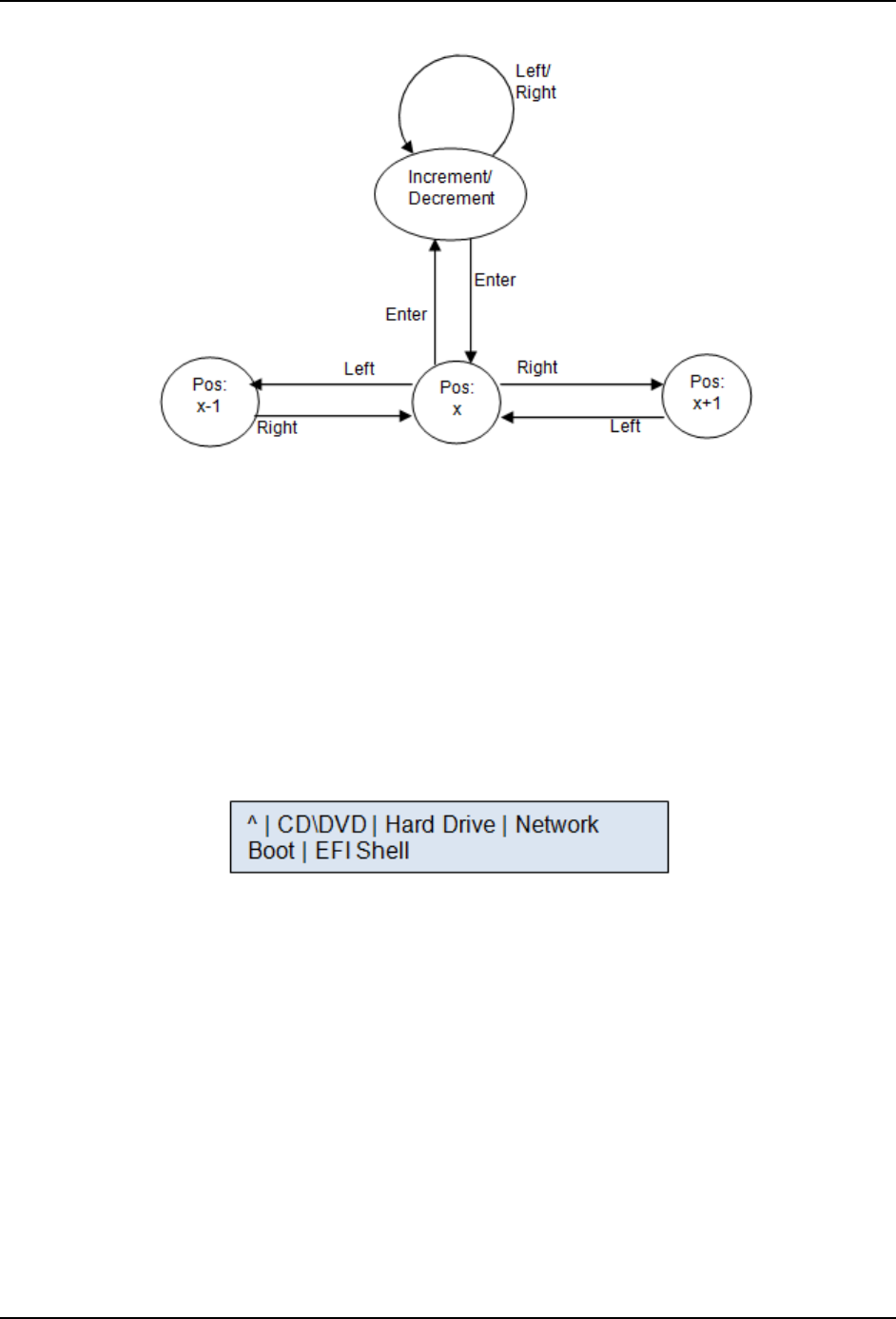

Figure 64. State Transition Diagram for Setting IP Address
8.5.3
RMM4 IP
The screen shots and the description of the previous section (for BMC IP menu) are also
applicable for RMM4 IP configuration menu.
8.5.4
Boot Device
If the user selects Boot Device in the Config menu, the following options will be displayed. The
selected item will be set as the next boot option and it will not be a permanent change.
Figure 65. Boot Options Configuration Menu
