Intel® Local Control Panel Intel® Server System R2000LH2/T2 Product Family TPS
Revision 1.0
72
8.4.5
Power
Selection of Power item in the View menu displays the amount of AC power drawn by the
system in Watts.

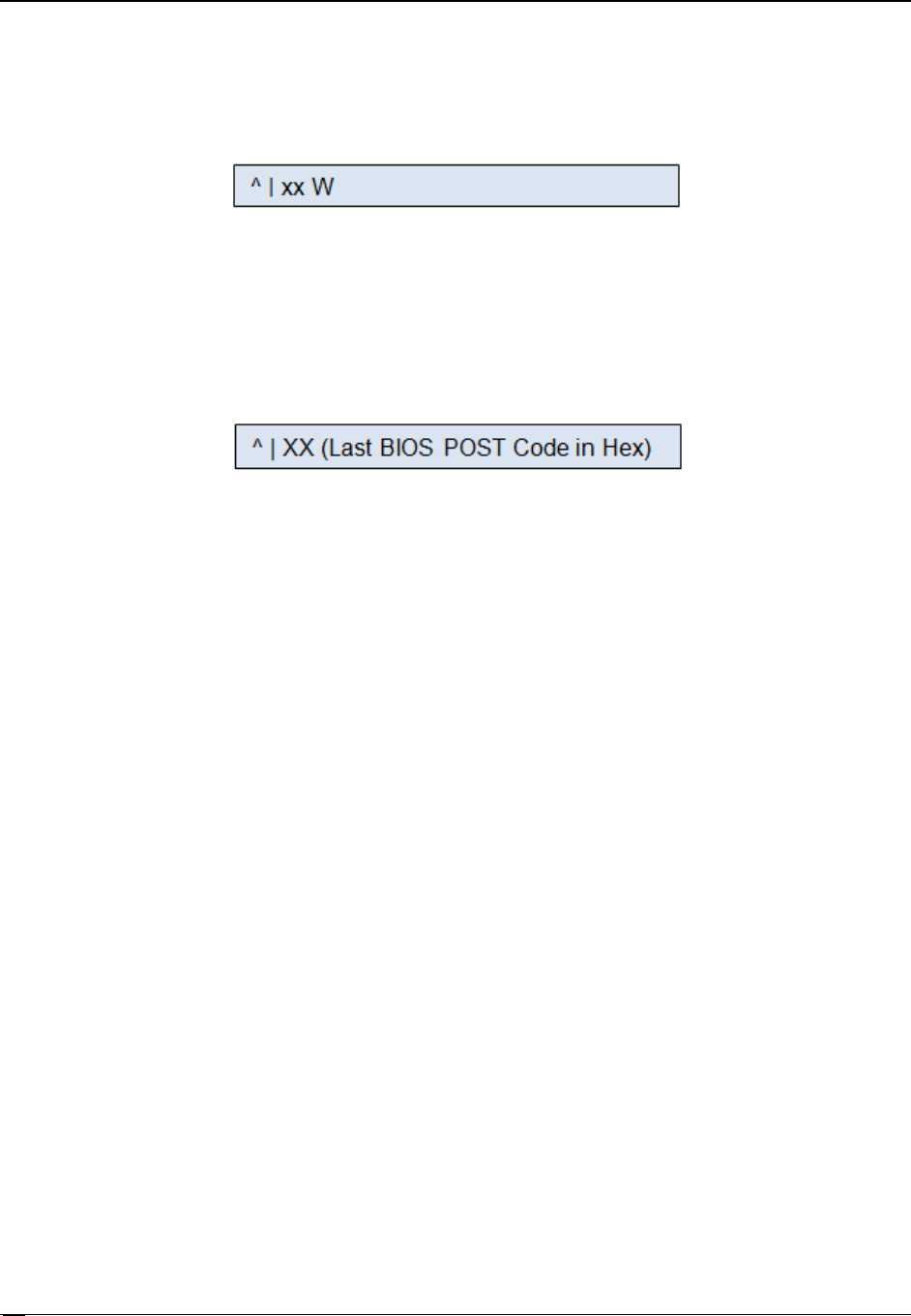

Figure 57. LCP – Power Consumed by the System Currently
8.4.6
Last Post Code (Last PC)
Selection of Last PC item in the View menu displays the last BIOS POST code in hexadecimal.
Figure 58. LCP – Last BIOS Post Code
