Intel® Server System R2000LH2/T2 Product Family TPS System Storage and Peripheral Drive Bays Overview
Revision 1.0
53
5.4
Solid State Drive (SSD) Support
The system provides the option of supporting up to two internal fixed mount 2.5” Solid State
Drives (SSD) to the top side of the system in front of the PDB.

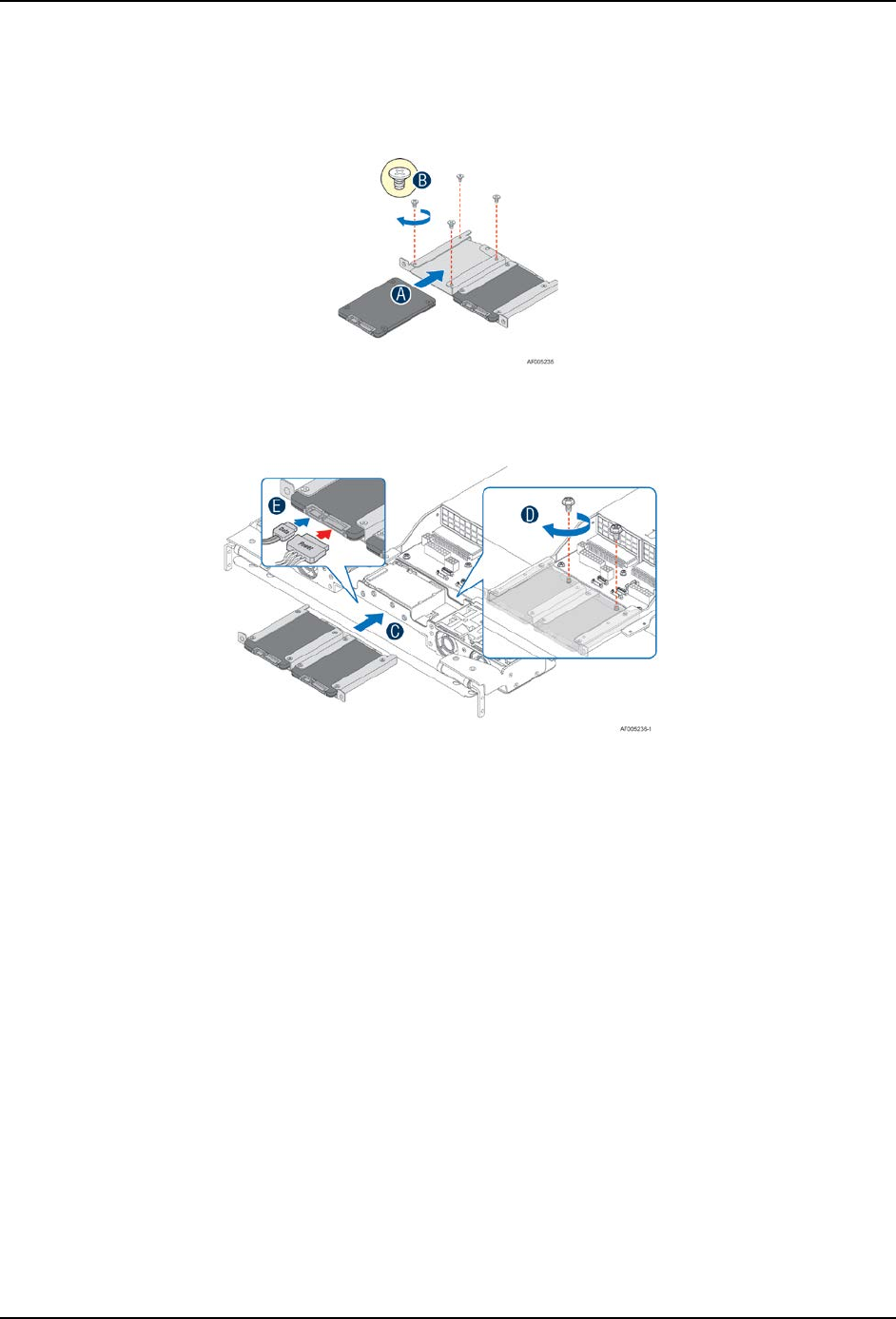

Figure 41. 2.5" Solid State Drive (SSD) Mounting Option
A 2x3 pin power connector on the server board labeled ODD PWR is designed to provide power
to both SSDs or a single SSD and an optical drive. Using the supplied power harness, one
power lead is routed to the optical drive bay, and two longer power leads are routed to the
SSDs. When both SSDs are used, the SATA cables are routed to SATA Port 0 and SATA Port 1
at the right rear of the system. If an Optical Drive is used, only one SSD data and power is
available.
