System Storage and Peripheral Drive Bays Overview Intel® Server System R2000LH2/T2 Product Family TPS
Revision 1.0
52
5.3
Optical Drive Support
Systems configured with four 3.5” hard drive bays or up to eight 2.5” hard drive bays also
include support for an optical drive bay A as illustrated below.

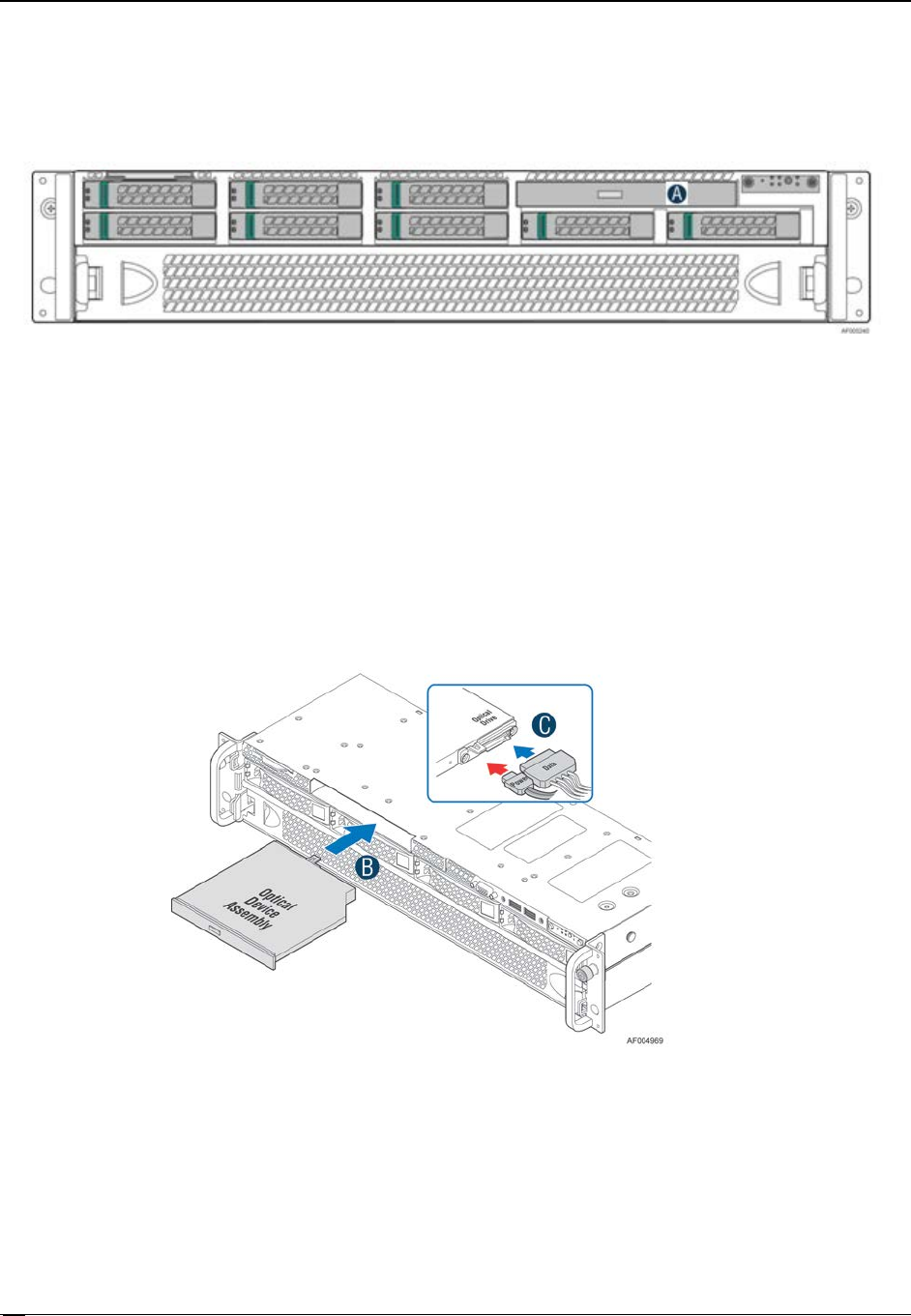

Figure 39. Optical Drive Support
The slimline optical drive carrier can be used with a single slimline optical drive. One slimline
carrier is included with your server system; the optical drive must be purchased separately. The
drive in the optical drive carrier is NOT hot-swappable. The system power must be turned off to
insert or remove the slimline optical drive carrier. A 2x3 pin power connector on the server
board labeled ODD is designed to provide power the SATA optical drive. The power cable is
routed to the system fan board for power. The SATA cable routes along the right side of the
chassis and is connected to SATA port 1 at the rear of the chassis.
Figure 40. Optical Drive Assembly
