System Storage and Peripheral Drive Bays Overview Intel® Server System R2000LH2/T2 Product Family TPS
Revision 1.0
46
5.1.1
2.5” Drive Hot-Swap Backplane Overview
The Hot-Swap SAS/SATA backplane serves as an interface between the mother board and the
system drives. The following diagrams show the location for each connector found on the
backplane. Each backplane is attached to the back of the drive bay assembly.

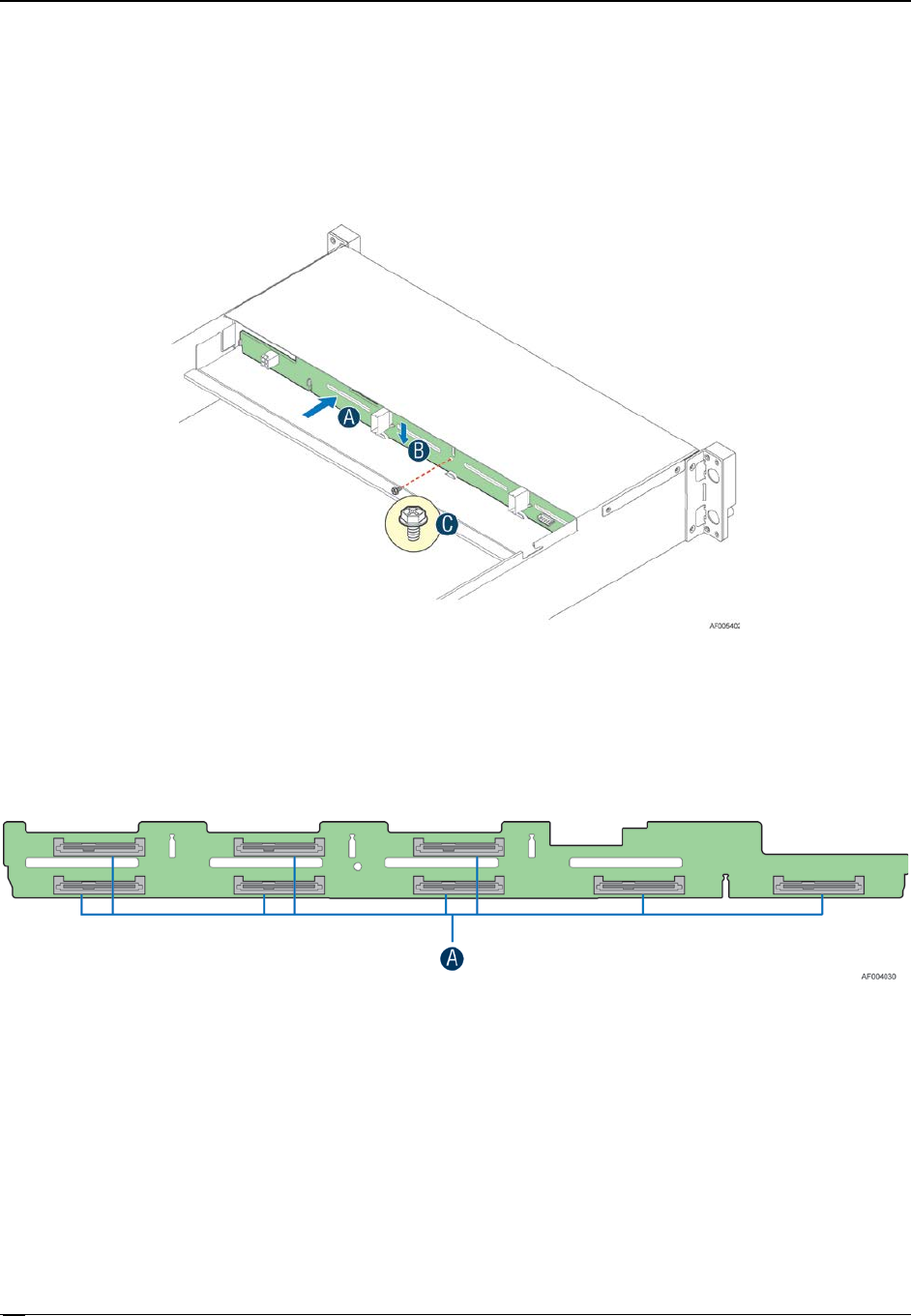

Figure 30. 2.5” Drive Hot-Swap Backplane Assembly
On the front side of each backplane are mounted eight hard disk drive hot swap interface
connectors.
Figure 31. 2.5” Drive Hot-Swap Backplane – Front Side
