System Storage and Peripheral Drive Bays Overview Intel® Server System R2000LH2/T2 Product Family TPS
Revision 1.0
44
5. System Storage and Peripheral Drive Bays Overview
The Intel
®
Server System R2000LH2/LT2 product family supports many storage device options,
including:
Hot Swap 2.5” Hard Disk Drives
Hot Swap 3.5” Hard Disk Drives
SATA Optical Drive
SATA Solid State Devices (SSDs)
SATA DOMs
Low Profile (2mm) eUSB Solid State Device (eUSB SSD)
Support for different storage and peripheral device options varies depending on the system
SKU. This chapter provides an overview of each available option.
5.1
2.5” Hard Disk Drive Support
The server is available in 8 x 2.5” hard disk configurations illustrated below.

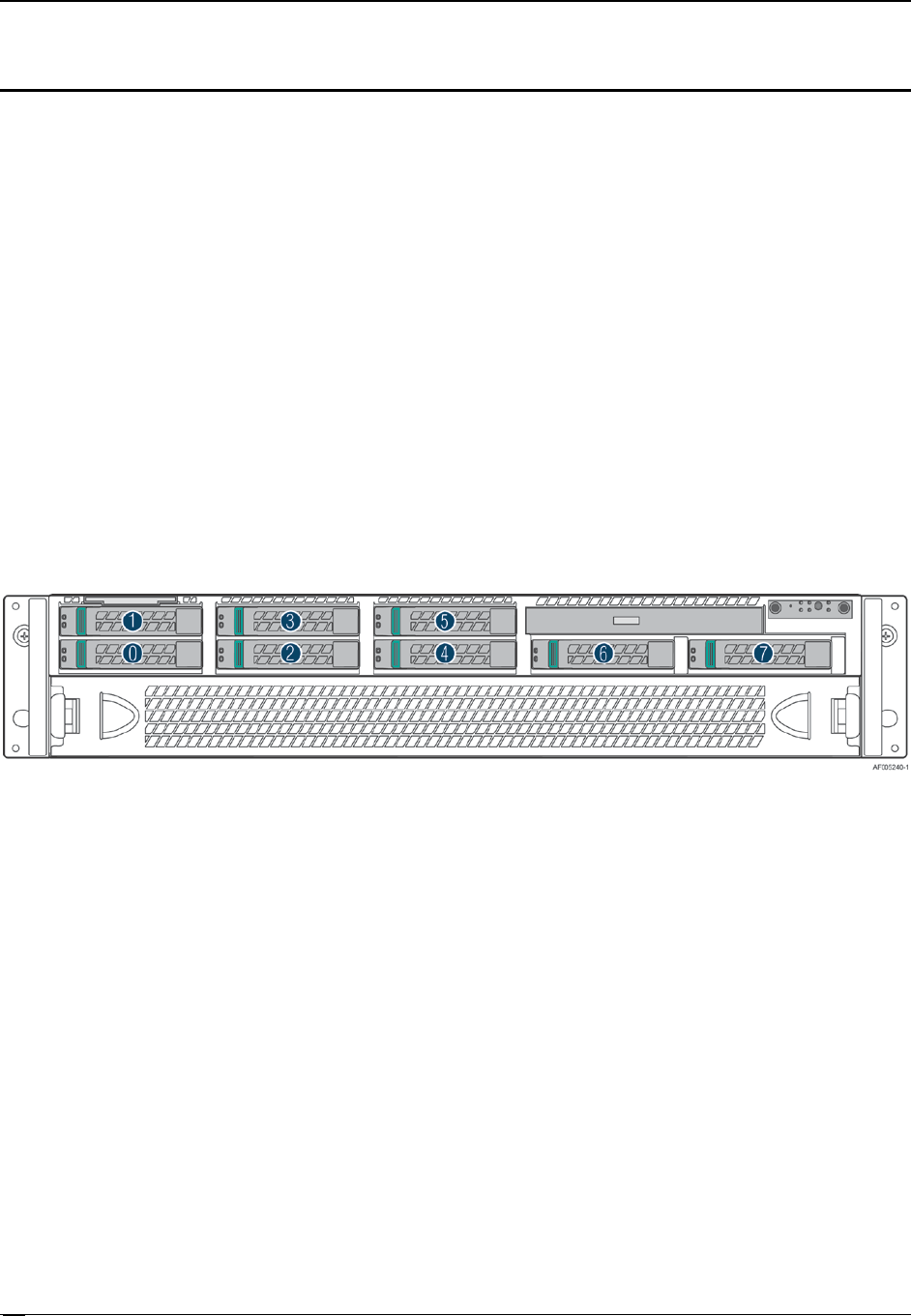

Figure 27. 8 x 2.5" Hard Drive Configuration
The drive bay can support either SATA or SAS hard disk drives. Mixing of drive types within the
hard drive bay is not supported. Hard disk drive type is dependent on the type of host bus
controller used, SATA only or SAS. Each 2.5” hard disk drive is mounted to a drive tray,
allowing for hot swap extraction and insertion. Drive trays have a latching mechanism that is
used to extract and insert drives from the chassis, and lock the tray in place.
