Power Subsystem Intel® Server System R2000LH2/T2 Product Family TPS
Revision 1.0
20
3.4
AC and DC Power Cord Specification Requirements
The AC and DC power cords used meet the specification requirements listed in the following
tables and figures.
Table 7. AC Power Cord Specifications
Cable Type
SJT
Wire Size
16 AWG
Temperature Rating
105ºC
Amperage Rating
13 A
Voltage Rating
125 V

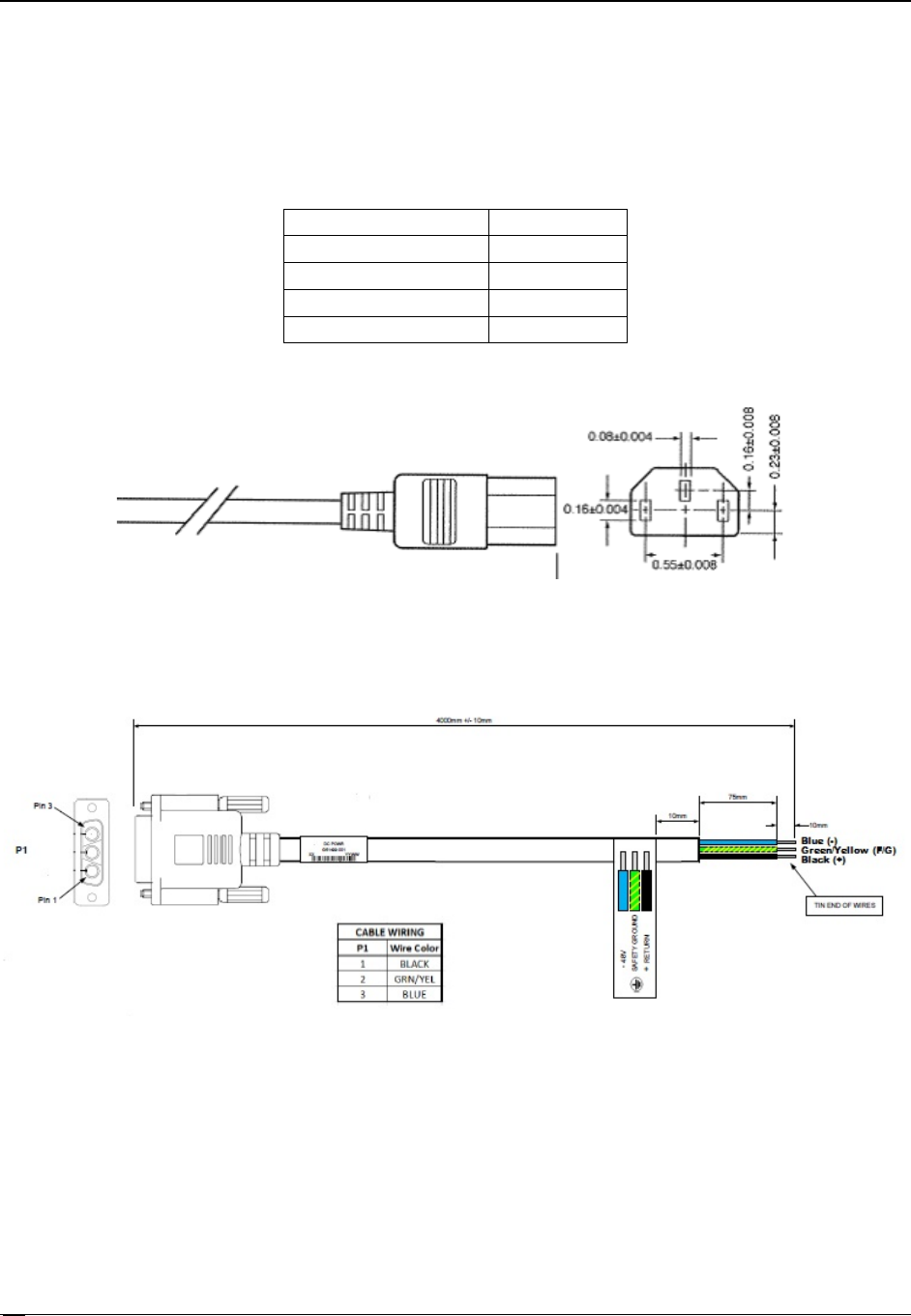

Figure 16. AC Power Cord
Figure 17. DC Power Cord
