Power Subsystem Intel® Server System R2000LH2/T2 Product Family TPS
Revision 1.0
16
3.1
Mechanical Overview
The physical size of the power supply enclosure is 39/40mm x 74mm x 185mm. The power
supply contains a single 40mm fan. The power supply has a card edge output that interfaces
with a 2x25 card edge connector in the system. The AC plugs directly into the external face of
the power supply.

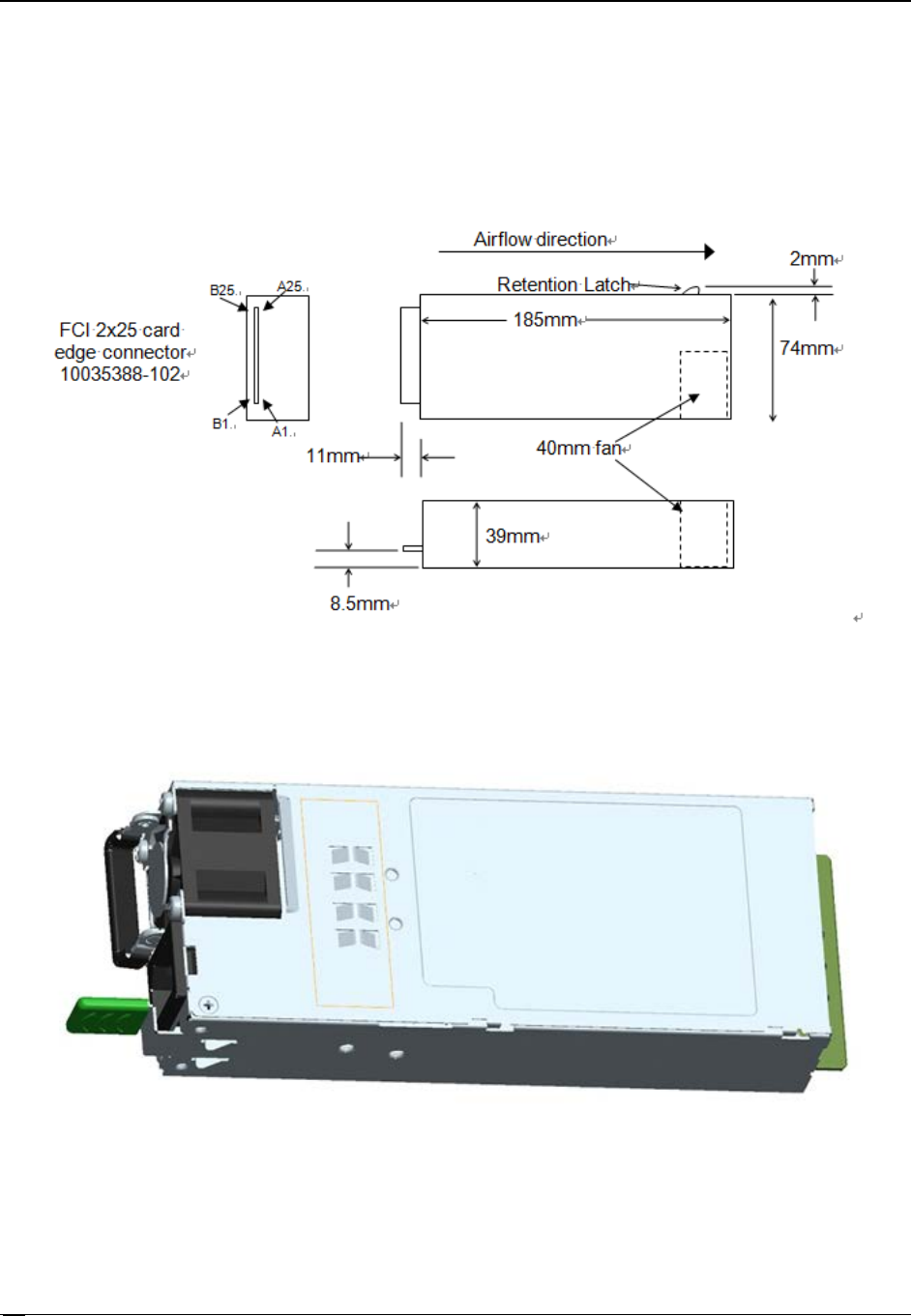

Figure 13. Power Supply Module Mechanical Drawing
Figure 14. Power Supply Module
