Intel® Server System R2000LH2/T2 Product Family TPS IO Module Support
Revision 1.0
91
The system supports the Intel
®
Remote Management Module 4 (RMM4). Additional information
for the RMM4 option can be found in the following documents: Intel
®
Remote Management
Module 4 Technical Product Specification and the Intel
®
Remote Management Module 4 and
Integrated BMC Web Console Users Guide.

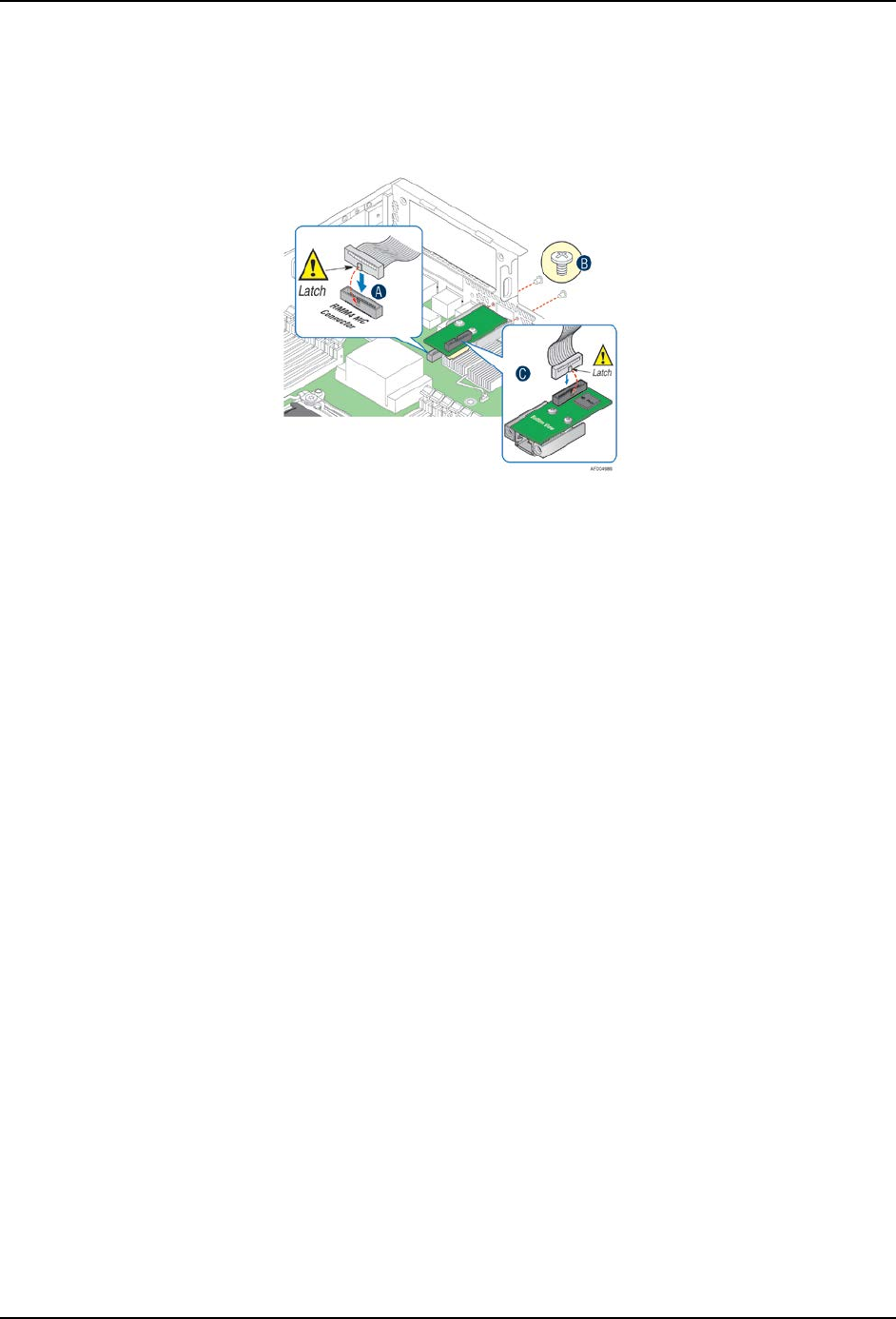

Figure 77. RMM4 Installation
