scalable home snoop behavior. The coherency protocol provides for direct cache-to-cache transfers for optimal
latency.
3.2.4
Integrated Memory Controller (IMC) and Memory Subsystem
Integrated into the processor is a memory controller. Each processor provides four DDR3 channels that
support the following:
 Unbuffered DDR3 and registered DDR3 DIMMs
 LR DIMM (Load Reduced DIMM) for buffered memory solutions demanding higher capacity
memory subsystems
 Independent channel mode or lockstep mode
 Data burst length of eight cycles for all memory organization modes
 Memory DDR3 data transfer rates of 800, 1066, 1333, 1600, 1866
2
MT/s,
 64-bit wide channels plus 8-bits of ECC support for each channel
 DDR3 standard I/O Voltage of 1.5 V and DDR3 Low Voltage of 1.35 V
 1-Gb, 2-Gb, and 4-Gb DDR3 DRAM technologies supported for these devices:
o UDIMM DDR3 – SR x8 and x16 data widths, DR – x8 data width
o RDIMM DDR3 – SR,DR, and QR – x4 and x8 data widths
o LRDIMM DDR3 – QR – x4 and x8 data widths with direct map or with rank multiplication
 Up to 8 ranks supported per memory channel, 1, 2 or 4 ranks per DIMM
 Open with adaptive idle page close timer or closed page policy
 Per channel memory test and initialization engine can initialize DRAM to all logical zeros with
valid ECC (with or without data scrambler) or a predefined test pattern
 Isochronous access support for Quality of Service (QoS)
 Minimum memory configuration: independent channel support with 1 DIMM populated
 Integrated dual SMBus* master controllers
 Command launch modes of 1n/2n
 RAS Support:
o Rank Level Sparing and Device Tagging
o Demand and Patrol Scrubbing
o DRAM Single Device Data Correction (SDDC) for any single x4 or x8 DRAM device.
Independent channel mode supports x4 SDDC. x8 SDDC requires lockstep mode
o Lockstep mode where channels 0 & 1 and channels 2 & 3 are operated in lockstep mode
o Data scrambling with address to ease detection of write errors to an incorrect address.
o Error reporting from Machine Check Architecture
o Read Retry during CRC error handling checks by iMC
o Channel mirroring within a socket
- CPU1 Channel Mirror Pairs (A,B) and (C,D)
- CPU2 Channel Mirror Pairs (E,F) and (G,H)
o Error Containment Recovery
2
Intel
®
Xeon
®
processor E5-2600 v2 product family only

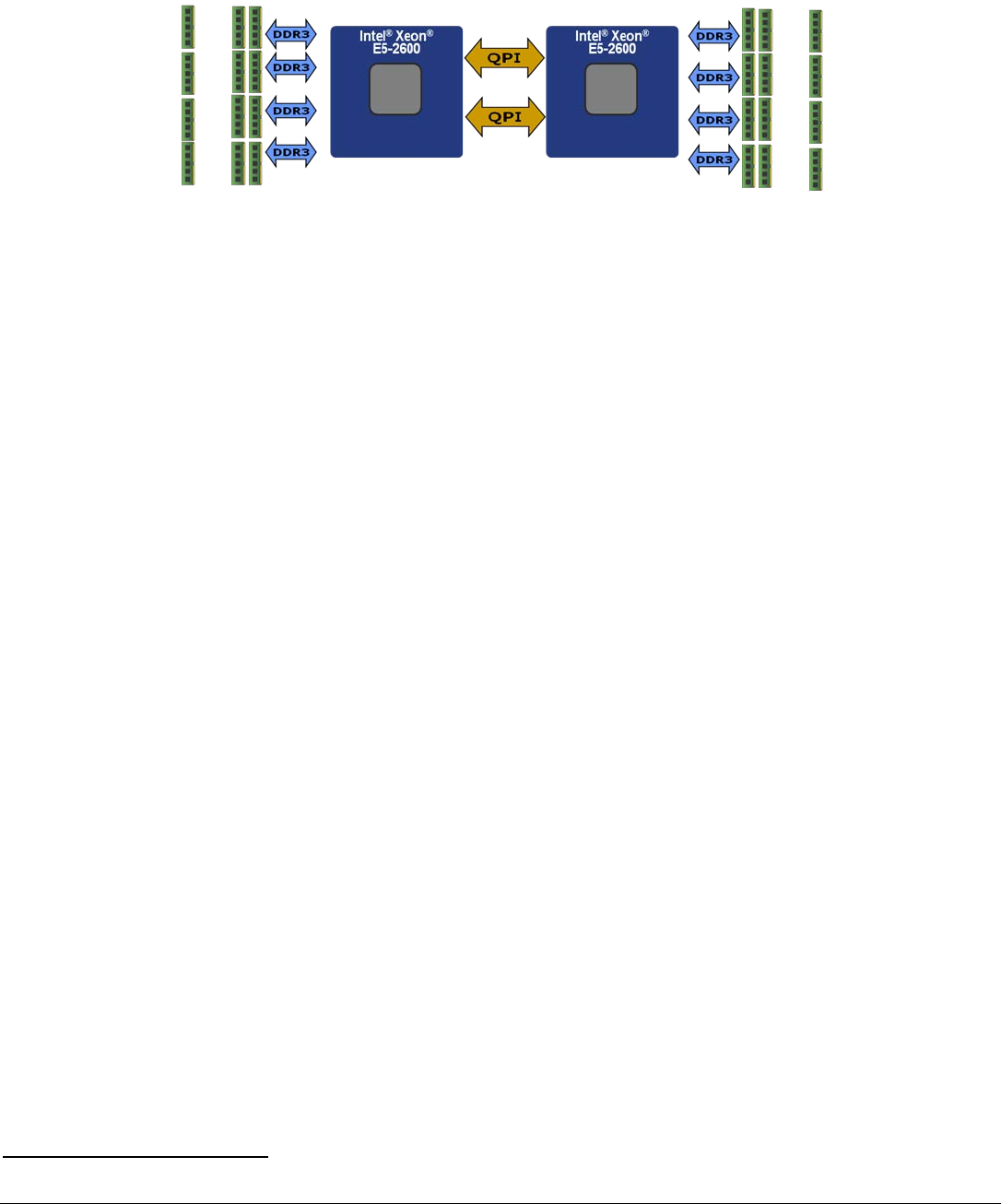

Figure 12. Integrated Memory Controller Functional Block Diagram
CPU 2
CPU 1
2 DIMMs / Ch S2600GL
3 DIMMs / Ch S2600GZ
2 DIMMs / Ch S2600GL
3 DIMMs / Ch S2600GZ
