When a requestor gets a pull command on the CMD_BUS, the requestor sends the command to the
pull arbiter. This is enqueued into a requestor-dedicated FIFO. The pull request FIFOs are much
smaller than the push request FIFOs because pull requests can request up to 128 bytes of data. It is
eight entries deep and asserts full when it has six entries to account for in-flight requests.
The pull arbiter monitors the heads of each of the three FIFOs. A round robin arbitration scheme is
applied to all valid requests. When a request is granted, the request is completed regardless of how
many data transfers are required. Therefore, one request can take as many as 16 – 32 DRAM
cycles. The push data bus can only use 32 bits when delivering data to the Microengines, PCI, and
the Intel XScale
®
core. For these data sources, it takes two cycles to pull every eight bytes
requested; otherwise, it takes only one cycle per eight bytes. On four byte cycles, data is delivered
as pulled.

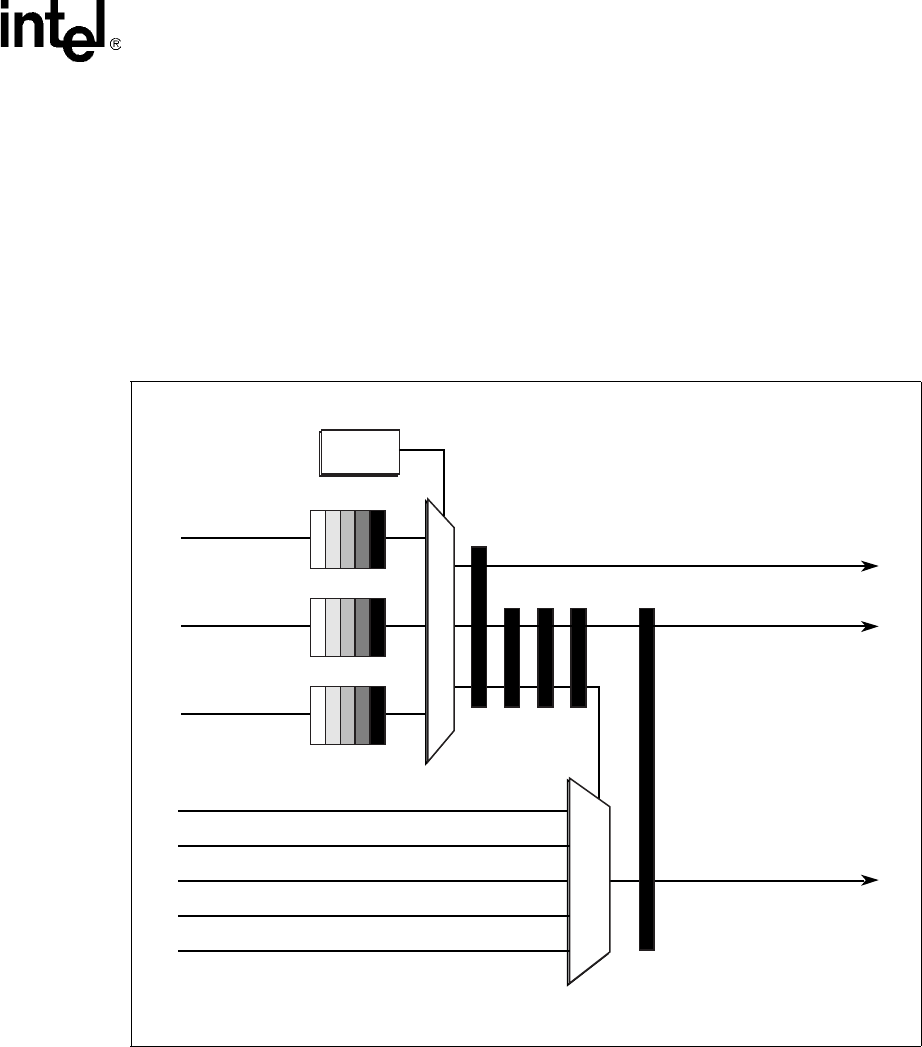

Figure 73. DRAM Pull Arbiter Functional Blocks
