Intel NUC Board NUC5i5RYB and Intel NUC Board NUC5i3RYB Technical Product Specification
50

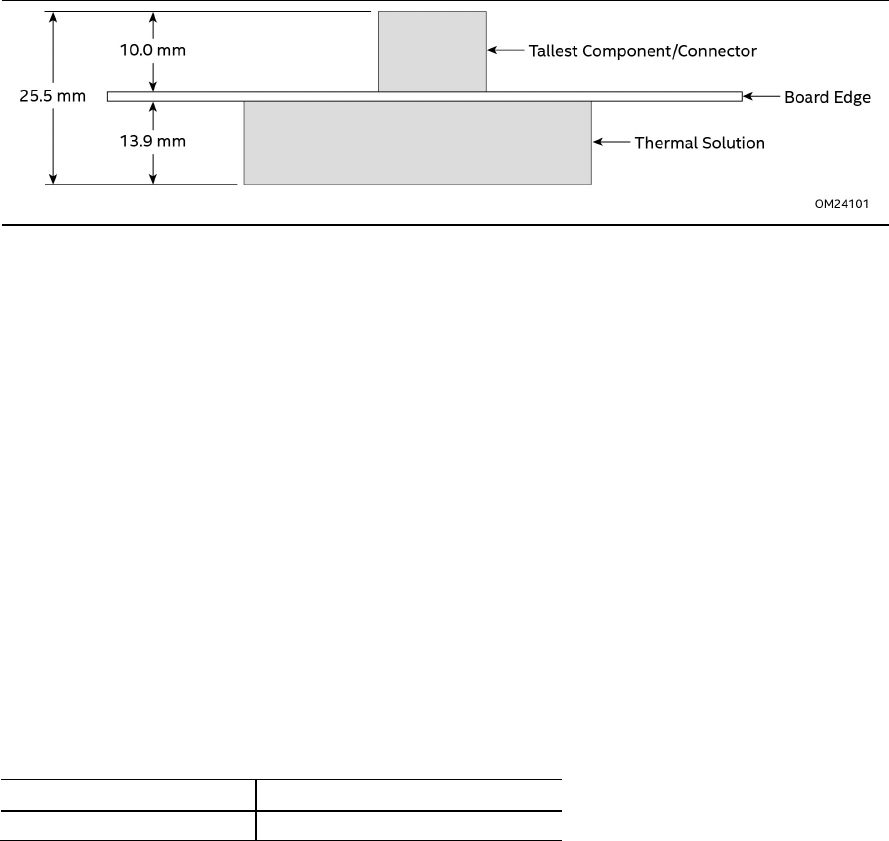

Figure 17 shows the height dimensions of the board.
Figure 17. Board Height Dimensions
2.5 Electrical Considerations
2.5.1 Power Supply Considerations
System power requirements will depend on actual system configurations chosen by the
integrator, as well as end user expansion preferences. It is the system integrator’s responsibility
to ensure an appropriate power budget for the system configuration is properly assessed based
on the system-level components chosen. See Section 2.2.3.3 Power Supply Connector for more
information.
2.5.2 Fan Header Current Capability
Table 21 lists the current capability of the fan headers.
Table 21. Fan Header Current Capability
Fan Header
Maximum Available Current
Processor fan .25 A
