Intel NUC Board NUC5i5RYB and Intel NUC Board NUC5i3RYB Technical Product Specification
38
This section describes the board’s connectors and headers. The connectors and headers can be
divided into these groups:
• Front panel I/O connectors
• Back panel I/O connectors
• On-board I/O connectors and headers (see page 39)
2.2.1 Front Panel Connectors

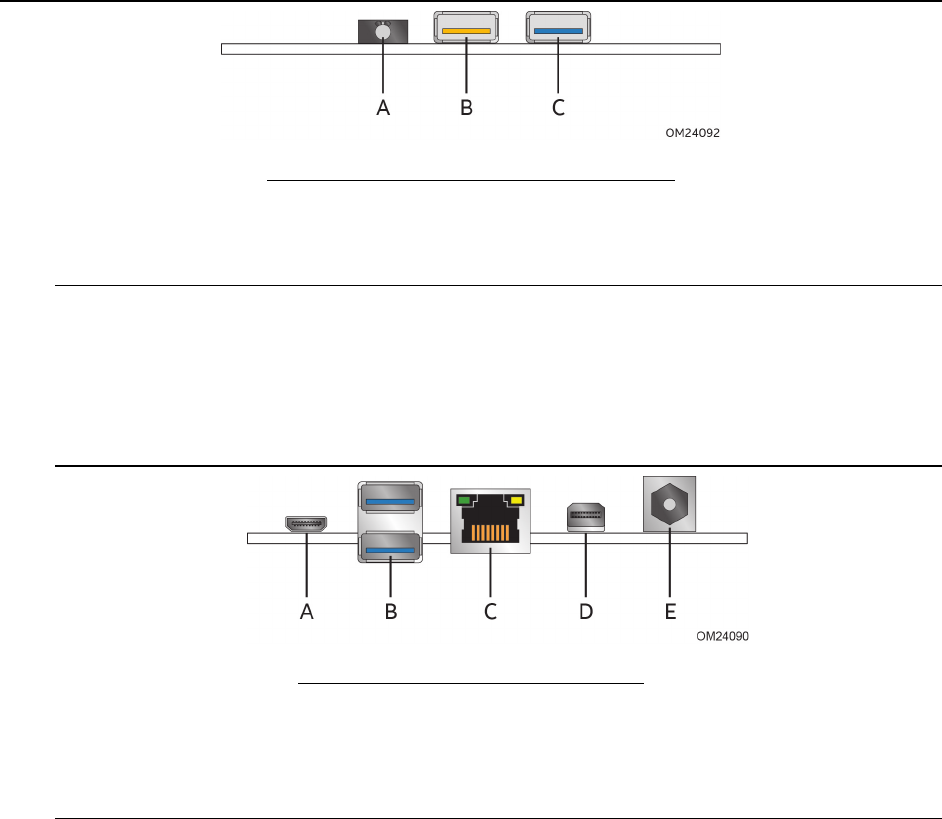

Figure 9 shows the location of the front panel connectors for the board.
Item Description
A Front panel stereo microphone/
headphone jack
B USB 3.0 port (charging) (yellow)
C USB 3.0 port (blue)
Figure 9. Front Panel Connectors
2.2.2 Back Panel Connectors
Figure 10 shows the location of the back panel connectors for the board.
Item Description
A Mini HDMI connector
B USB 3.0 ports (blue)
C
LAN
D
Mini DisplayPort connector
E 12-19 V DC input jack
Figure 10. Back Panel Connectors
