Intel NUC Board NUC5i5RYB and Intel NUC Board NUC5i3RYB Technical Product Specification
36
1.12.2.8 +5 V Standby Power Indicator LED
The standby power indicator LED shows that power is still present even when the computer
appears to be off. Figure 8 shows the location of the standby power LED.
CAUTION
If AC power has been switched off and the standby power indicator is still lit, disconnect the power
cord before installing or removing any devices connected to the board. Failure to do so could
damage the board and any attached devices.

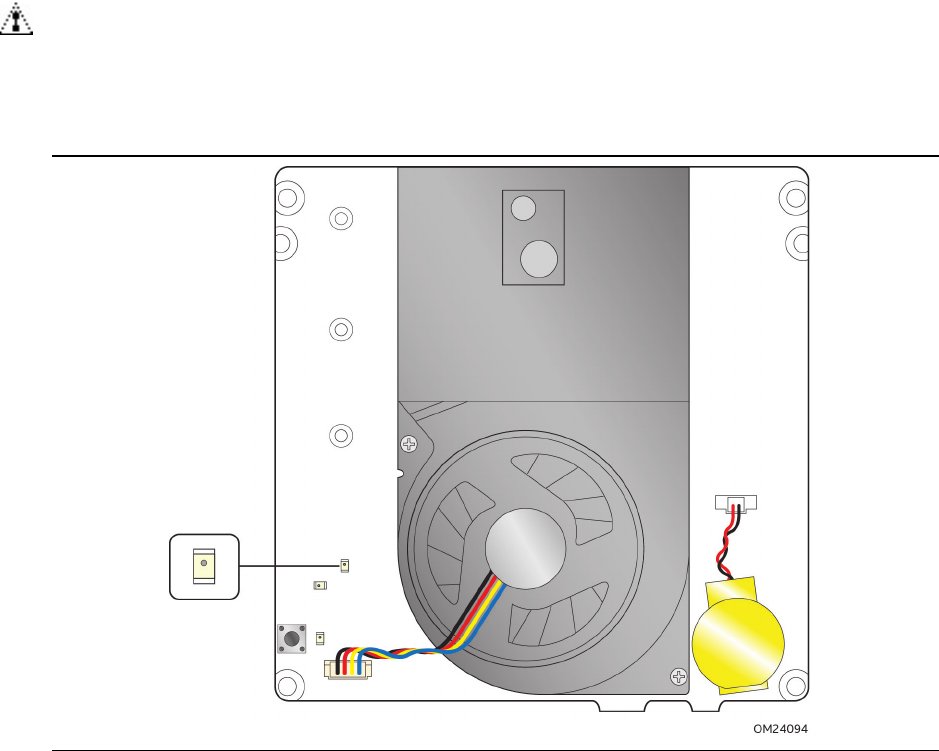

Figure 8. Location of the Standby Power LED
