Intel NUC Board D33217CK Technical Product Specification
46
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a custom chassis. Figure 13 illustrates the mechanical
form factor for the board. Dimensions are given in inches [millimeters]. The outer
dimensions are 4.0 inches by 4.0 inches [101.60 millimeters by 101.60 millimeters].

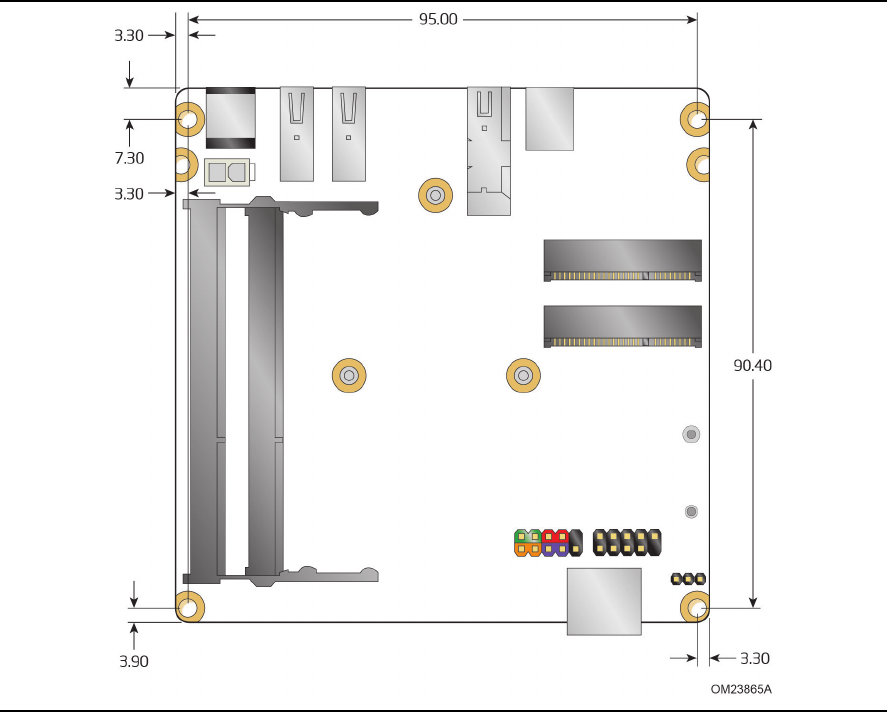

Figure 13. Board Dimensions
