Intel NUC Board D33217CK Technical Product Specification
36
2.2.1 Back Panel Connectors

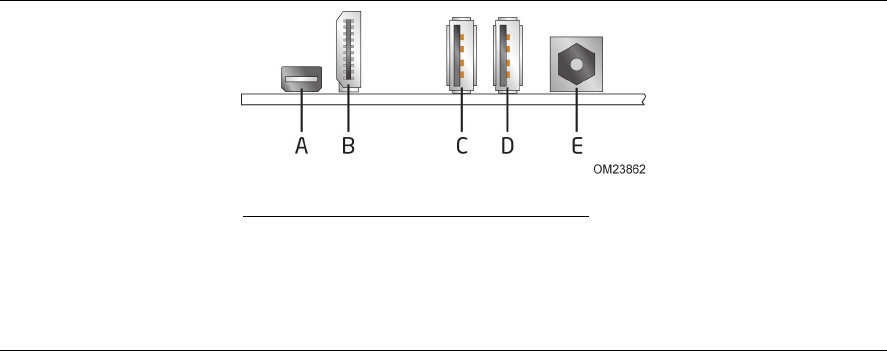

Figure 8 shows the location of the back panel connectors for the board.
Item
Description
A
Thunderbolt connector
B
HDMI connector
C
USB 2.0 port
D
USB 2.0 port
E
19 V DC input jack
Figure 8. Back Panel Connectors
