Hardware Reference Manual 185
Intel
®
IXP2800 Network Processor
Microengines
4.5.2.2 Write to TBUF
For writing to TBUF, the header comes from the Microengine and data comes from RBUF or
DRAM. Since the Microengine to TBUF header transfer happened in 8-byte chunks, it is possible
that the first longword that is inside tr0 may not contain any data if the valid header begins in
transfer register tr1. Since data in tr0 goes to the LW1 location at offset 0 and data in tr2 goes to the
LW0 location at offset 0, there are some invalid bytes at the beginning of the header, at offset 0.
These invalid bytes are removed by the aligner on the way out of TBUF, based on the control word
for this TBUF element. The data from tr2, tr3, ... tr6 is placed in TBUF, as shown in Figure 64 in
big-endian order.

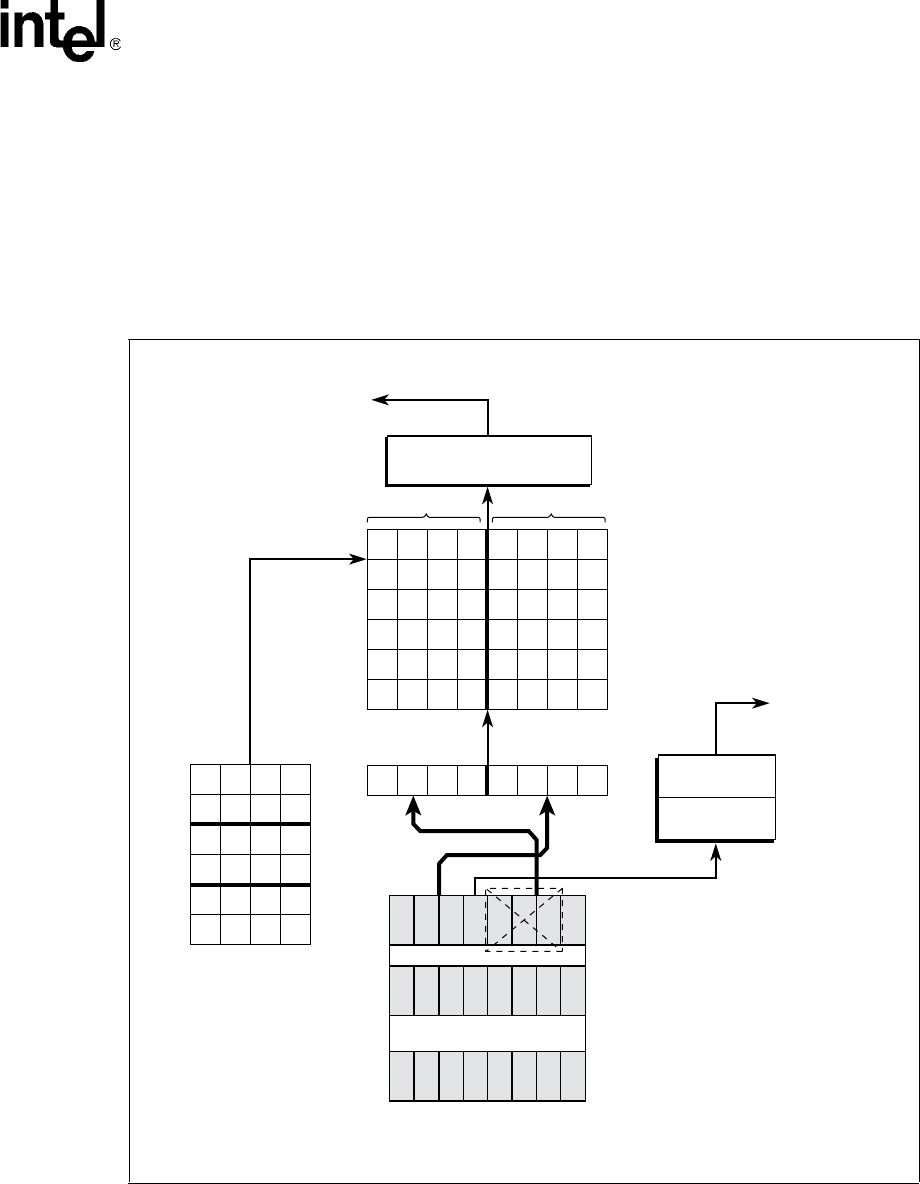

Figure 64. Write to TBUF
A8945-01
RBUF or DRAM
MicroEngine
Transfer Registers
To SPI-4
64-bit Read
from addr 1 by
MicroEngine
addr 0000_0000
offset 0
offset 1
offset 2
offset 3
offset 4
offset 5
addr 0001_0000
A63 addr0
tr0
tr1
tr2
tr3
tr4
tr5
LW0
4
XXX34567
5670123
12 13 14 15 8 9 10 11
20 21 22 23 16 17 18 19
treg 0 gets
0123
Remove the empty bytes
based on the control word
treg 1 gets
4567
LW1
XXXX
X h1h2h3
h4 h5 h6 h7
h8 h9 h10 h11
h12 h13 X X
XXXX
XXXXXh1h2h3
h4 h5 h6 h7 h8 h9 h10 h11
h12h13XXXXXX
XXX34567
8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23
