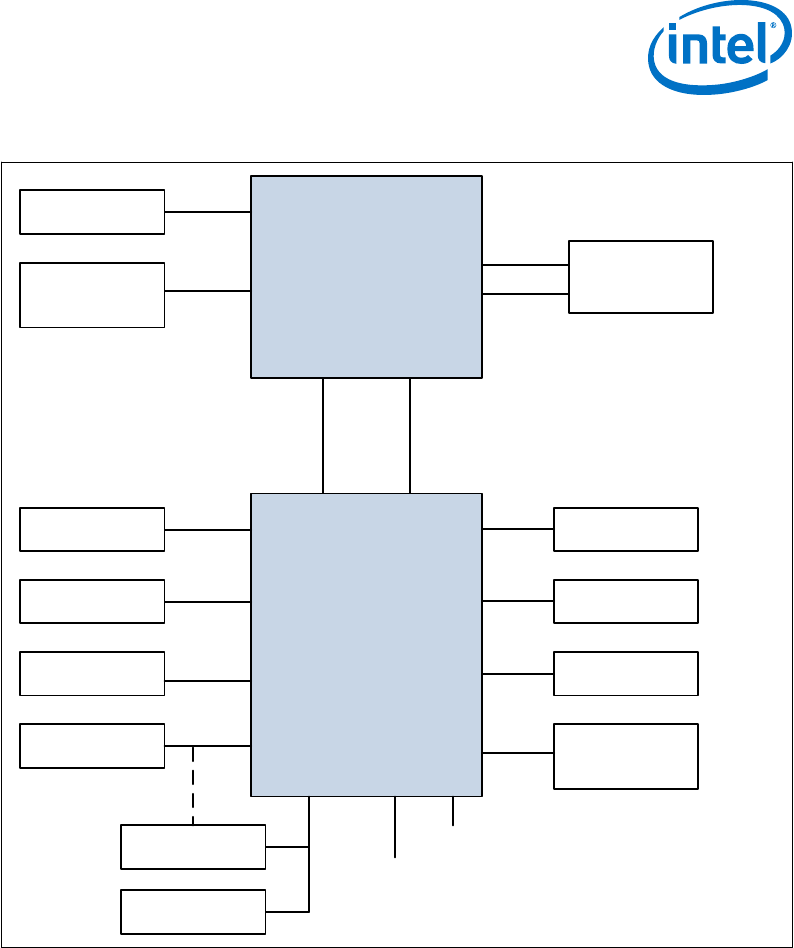

Figure 1. Platform Block Diagram
Processor
PCI Express* 3.0
Digital Display
Interface (DDI)
(3 interfaces)
System Memory
1333 / 1600 MT/s
2 DIMMs / CH
CH A
CH B
Intel
®
Flexible Display
Interface (Intel
®
FDI)
(x2)
Direct Media Interface 2.0
(DMI 2.0) (x4)
Note: 2 DIMMs / CH is not
supported on all SKUs.
Platform Controller
Hub (PCH)
SATA, 6 GB/s
(up to 6 Ports)
Analog Display
(VGA)
SPI Flash
Super IO / EC
Trusted Platform
Module (TPM) 1.2
LPC
Intel
®
High
Definition Audio
(Intel
®
HD Audio)
Integrated LAN
USB 3.0
(up to 6 Ports)
USB 2.0
(8 Ports)
PCI Express* 2.0
(up to 8 Ports)
SPI
SMBus 2.0
GPIOs
Supported Technologies
• Intel
®
Virtualization Technology (Intel
®
VT)
• Intel
®
Active Management Technology 9.5 (Intel
®
AMT 9.5 )
• Intel
®
Trusted Execution Technology (Intel
®
TXT)
• Intel
®
Streaming SIMD Extensions 4.2 (Intel
®
SSE4.2)
• Intel
®
Hyper-Threading Technology (Intel
®
HT Technology)
• Intel
®
64 Architecture
• Execute Disable Bit
• Intel
®
Turbo Boost Technology 2.0
• Intel
®
Advanced Vector Extensions 2.0 (Intel
®
AVX2)
• Intel
®
Advanced Encryption Standard New Instructions (Intel
®
AES-NI)
1.1
Introduction—Processor
Desktop 4th Generation Intel
®
Core
™
Processor Family, Desktop Intel
®
Pentium
®
Processor Family, and Desktop Intel
®
Celeron
®
Processor Family
December 2013 Datasheet – Volume 1 of 2
Order No.: 328897-004 11
