Intel Desktop Board DG35EC Product Guide
32

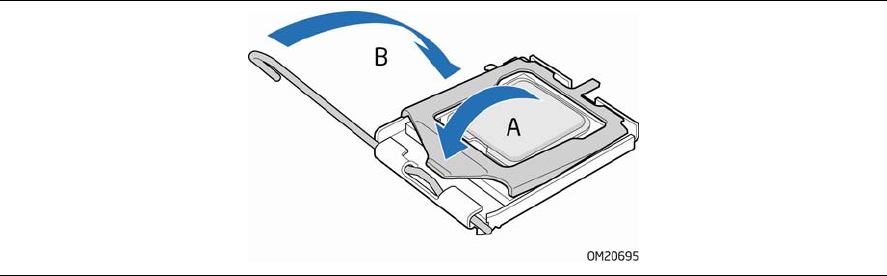

7. Pressing down on the load plate (Figure 11, A), close and engage the socket lever
(Figure 11, B).
Figure 11. Close the Load Plate
Installing a Processor Fan Heat Sink
Desktop Board DG35EC has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual.
