Server Board Installations and Upgrades
Intel Server Board SE7210TP1-E User Guide 21
Installing or Replacing the Processor
NOTES
Use the instructions provided below to install or replace a processor instead
of using the instructions that came with the processor.
CAUTIONS
Processor must be appropriate: You may damage the server board if
you install a processor that is inappropriate for your server. See “Additional
Information and Software” for a link to the list of compatible processors.
ESD and handling processors: Reduce the risk of electrostatic
discharge (ESD) damage to the processor by doing the following: (1) Touch
the metal chassis before touching the processor or server board. Keep part of
your body in contact with the metal chassis to dissipate the static charge
while handling the processor. (2) Avoid moving around unnecessarily.
Installing the Processor
To install a processor, follow these instructions:
1. Observe the safety and ESD precautions at the beginning of this document.
2. Locate the processor socket and raise the socket handle completely. See Figure 7, letter A.
3. Aligning the pins of the processor with the socket, insert the processor into the socket. See
letter B in the figure below
4. Close the handle completely. See letter C.

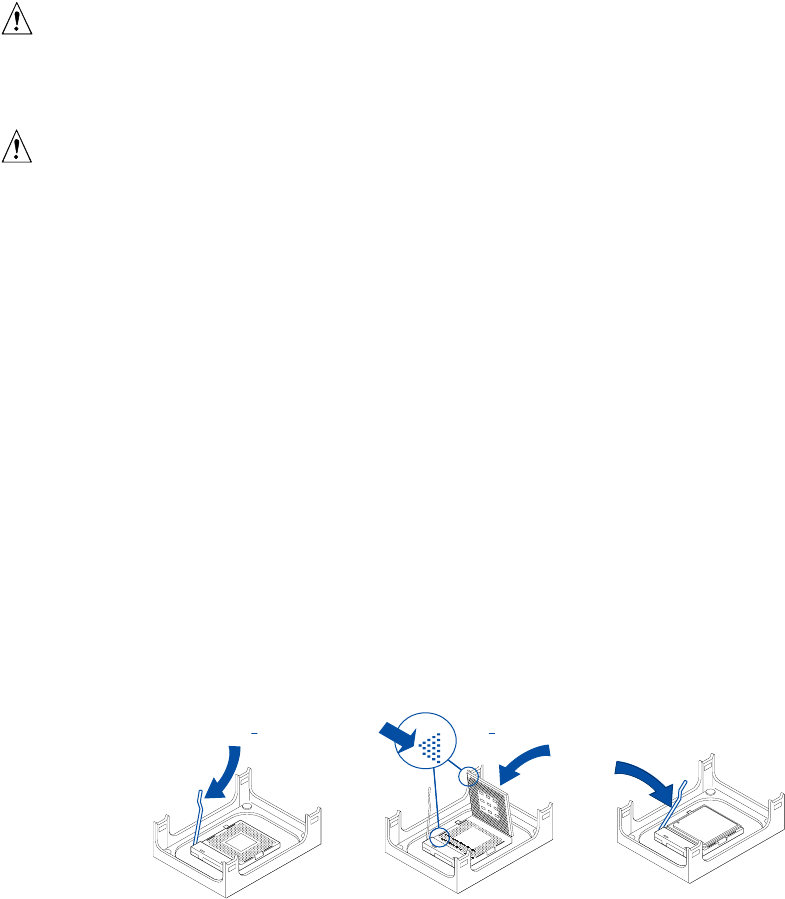

Figure 7. Installing the Processor in the Processor Socket
✏
NOTE
The bottom of the heat sink may have thermal interface material (TIM)
already applied. Be careful not to damage the thermal interface material.
TP00519
AA BB CC
