Server Board Features
16 Intel Server Board SE7210TP1-E User Guide

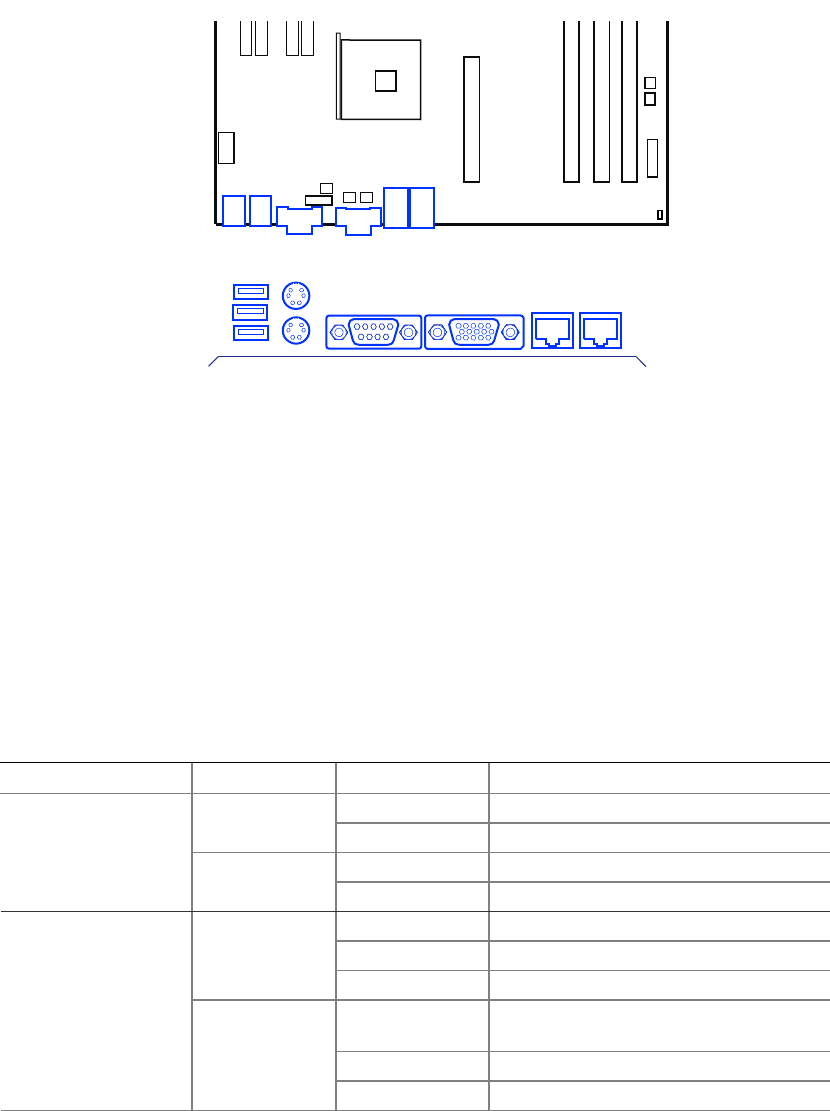

Back Panel Connectors
TP00508
AB C D EF
A. USB 1, 2, 3
B. Keyboard/mouse
C. Serial port A
D. Video
E. NIC1 (1Gbit)
F. NIC2 (10/100 Mbit)
Figure 5. Back Panel Connectors
The NIC LEDs at the right and left of each NIC provide the following information.
Table 3. NIC LEDs
NIC LED Color LED State Description
Off 10 Mbps connection (if right LED is on)
Left LED
Solid Green 100 Mbps connection
On Network connection in place
NIC2 (10/100 Mbit)
Right LED
Blinking Green Transmit/receive activity
Off No network connection
Solid Amber Network connection in place
Left LED
Blinking Amber Transmit/receive activity
Off 10 Mbps connection (if left LED is on or
blinking)
Solid Amber 100 Mbps connection
NIC1 (Gigabit)
Right LED
Solid Green 1000 Mbps connection
