Server Board Features
14 Intel Server Board SE7210TP1-E User Guide
Internal Component Connections
The connections you make depend on the chassis you are installing the board into and the
components you are installing. You may not need to make all of the connections shown in Figure
3.
If your Server Board SE7210TP1-E is installed into the Server Chassis SC5250-E, make sure the
hard drive cage is installed before making your connections. This is necessary because the hard
drive cage contains one of the front system fans.
A
T
BA
S
B
R
CD
M
E
N
F
G
H
I
U
J
K
WLXMNO
P
TP00507
12 V
A
T
A
1
0
0
Serial ATA
Q

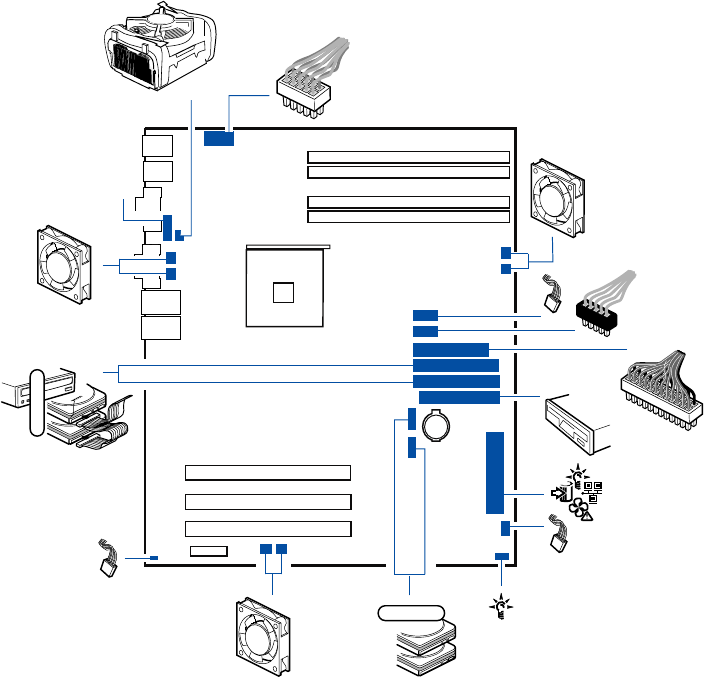

Figure 3. Making Connections to the Server Board
A: CPU1 Fan Connector
B: +12V CPU Power Connector
C: System Fan Header 2
D: System Fan Header 1
E: Front USB Header
F: Auxiliary Power Connector
G: Main Power Connector
H: Floppy Connector
I: Front Panel Connector
J: Hot-swap Backplane Headers
K: HDD LED
L: SATA Port A1
M: SATA Port A2
N: System Fan Header 6
O: System Fan Header 5
P: Chassis Intrusion Header
Q: IDE Connectors
R: System Fan Header 4
S: System Fan Header 3
T: Serial B Header
