Solid-State Drive 520 Series
Table Of Contents
- Intel® Solid-State Drive 520 Series
- Contents
- 1.0 Overview
- 2.0 Product Specifications
- 3.0 Mechanical Information
- 4.0 Pin and Signal Descriptions
- 5.0 Supported Command Sets
- 5.1 ATA General Feature Command Set
- 5.2 Power Management
- 5.3 Security Mode Feature Set
- 5.4 SMART Command Set
- 5.5 Device Statistics
- 5.6 SMART Command Transport (SCT)
- 5.7 Data Set Management Command Set
- 5.8 Host Protected Area Command Set
- 5.9 48-Bit Address Command Set
- 5.10 General Purpose Log Command Set
- 5.11 Native Command Queuing
- 5.12 Software Settings Preservation
- 5.13 SATA Link Power Management (LPM)
- 6.0 Certifications and Declarations
- 7.0 References
- 8.0 Terms and Acronyms
- 9.0 Revision History
- Appendix A IDENTIFY DEVICE Command Data
Intel
®
Solid-State Drive 520 Series
February 2012 Product Specification
Order Number: 325968-001US 11
Intel
®
Solid-State Drive 520 Series
3.0 Mechanical Information

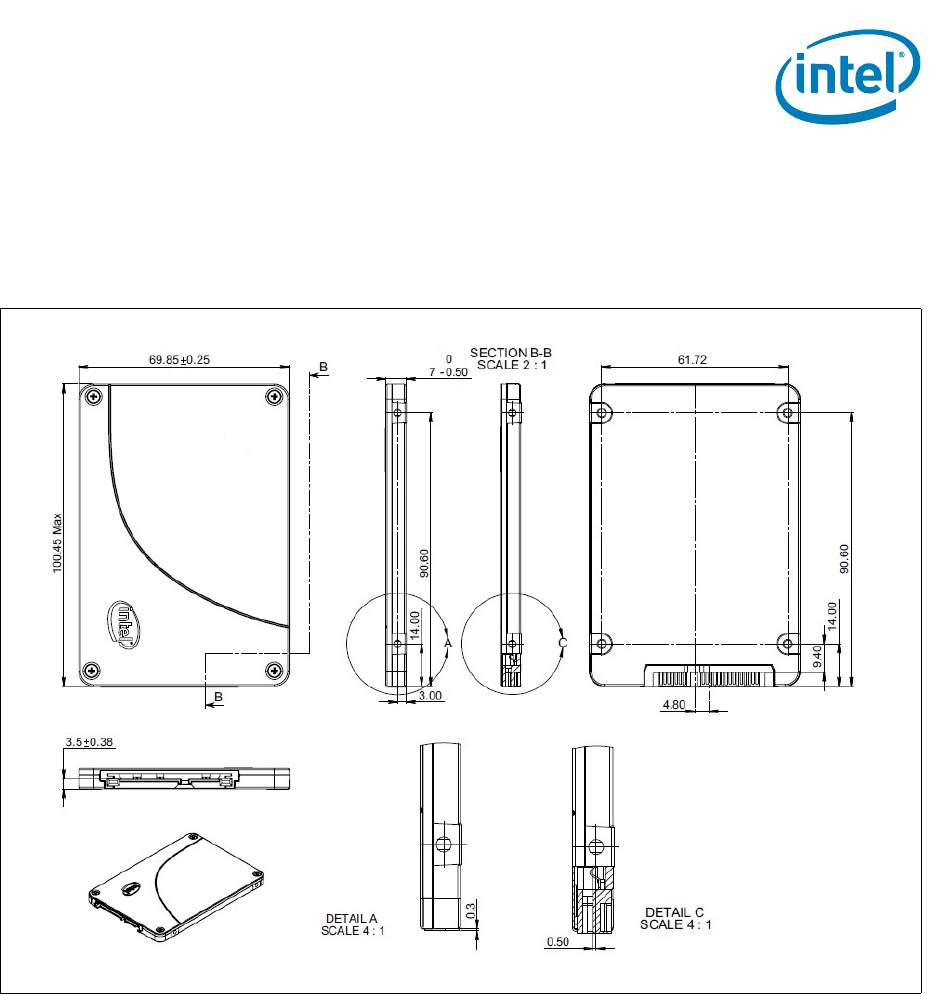

Figure 1 shows the physical package information for the 7mm height 2.5-inch
Intel SSD 520 Series. All dimensions are in millimeters.
Figure 1. Dimensions for 7mm 2.5-inch Form Factor
