5: System Configuration
User’s Manual
5•27
Now install the video display driver for the onboard dis-
play by clicking on the Graphic Driver items and follow-
ing the installation program’s instructions.
Review the Lan Driver Installation Guide for the OS you
have installed by clicking on it and then install the ap-
propriate LAN driver for the OS you are using.
The Adobe Acrobat reader install program will run when
you try to view the LAN Driver Installation Guide if you
have not already installed it. Install the program and then
repeat the procedure to read the guide information.
If you will use Windows 2000 or Windows XP, install the
supplied USB 2.0 driver. Other versions of Windows and
other operating systems are not supported. Under them,
the USB ports will function as USB 1.1 ports.
If you have installed either a Smart Card Reader or a
Memory Stick/Secure Digital card reader, or have installed
the optional Smart Panel, install the Smart I/O Device
Driver. Click on the item and follow the installation
program’s instructions.

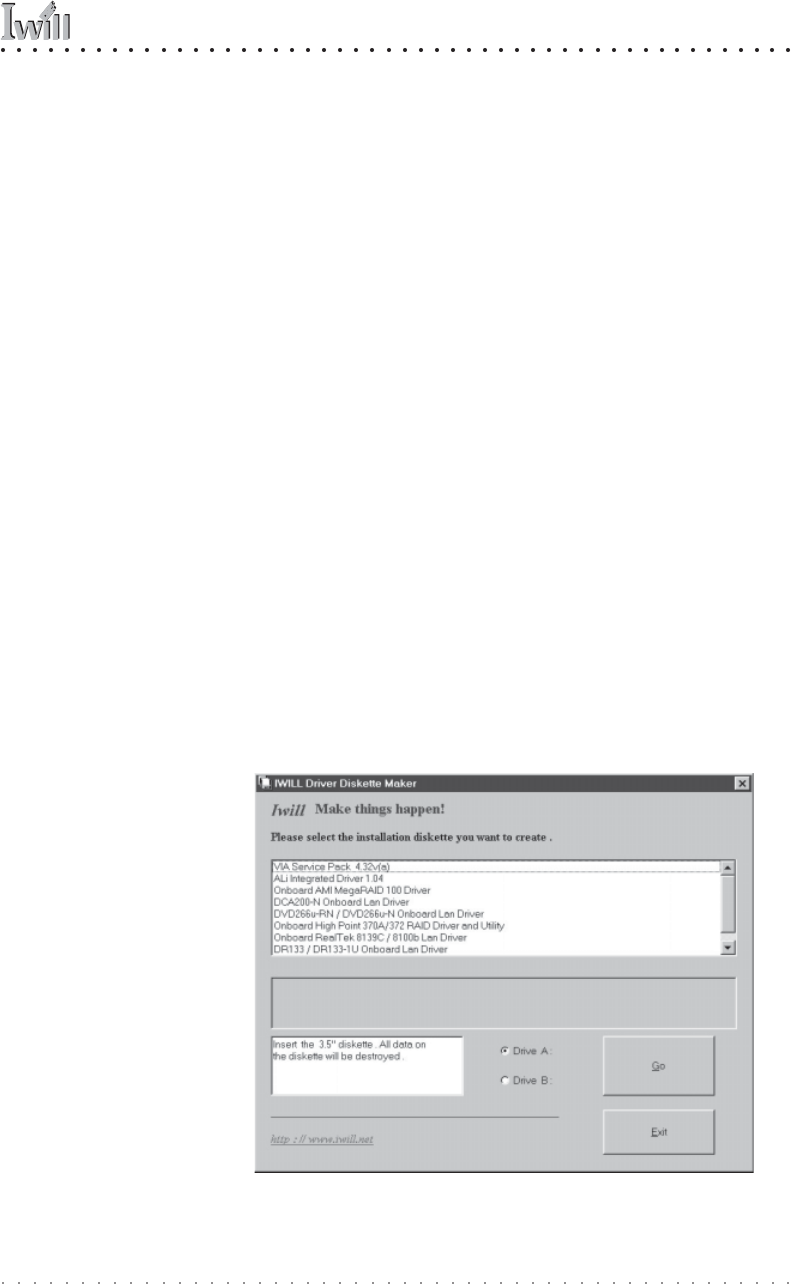

The Make Driver Utility
The “Make Driver” utility makes driver floppy disks.
You can use this utiltiy to make a Windows driver disk
for the onboard Realtek LAN chip.
Make Driver Utility:
You can use this utility to
make a driver disk for the
onboard Realtek LAN. Se-
lect the listed item and
follow the onscreen in-
structions.
USB 2.0 Support:
The supplied USB 2.0
driver is for use with Win-
dows 2000 and Windows
XP. The driver does not
support other versions of
Windows.
