5: System Configuration
User’s Manual
5•25
Installing Windows Drivers
This section assumes you have installed one of the sup-
ported Microsoft Operating Systems on the system hard
disk drive.
To install Windows drivers, insert the Power Installer
support CD-ROM disc in the system’s CD-ROM (or other
optical drive) and wait for the Power Installer interface
to automatically load. If it doesn’t start, run the Power
Installer interface directly from the disc by running Setup.
The Power Installer main screen will appear. Click on a
motherboard model number to open the section for it.

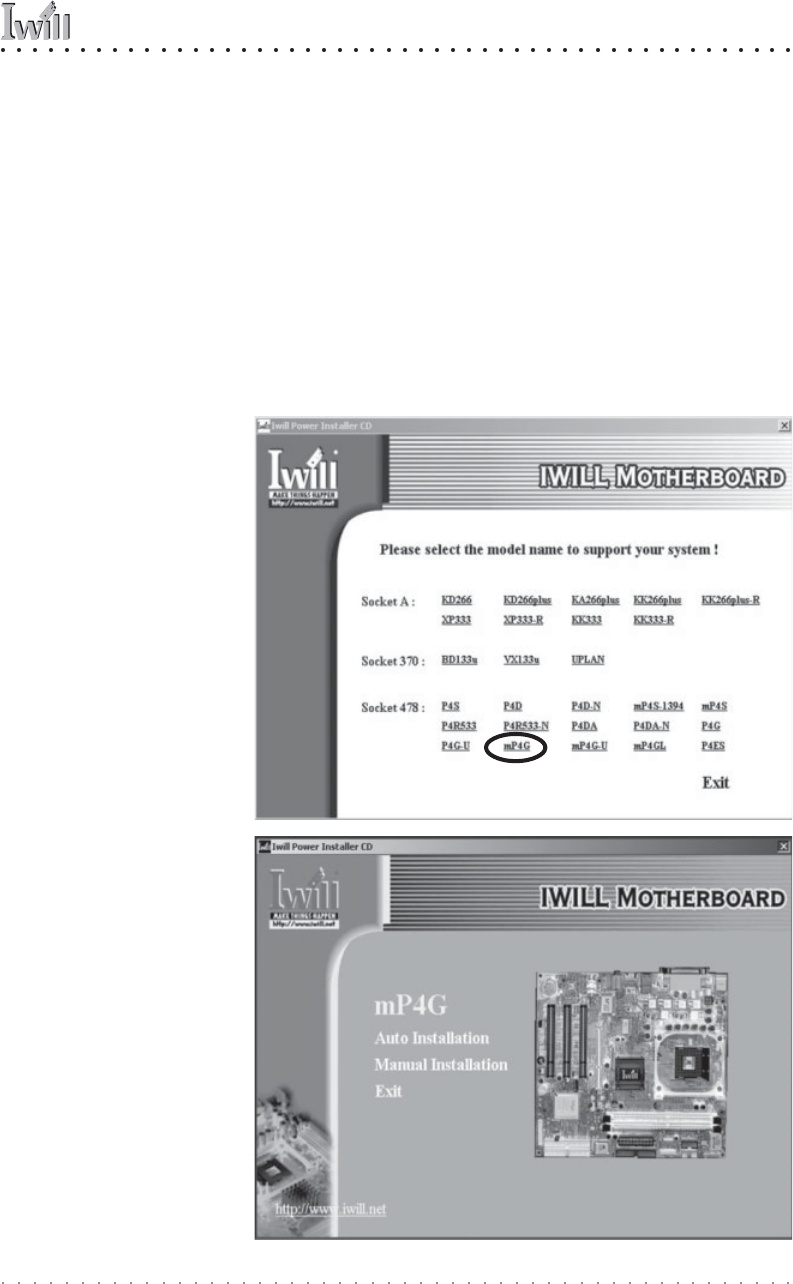

Power Installer:
mP4G Main Screen
You can automatically in-
stall the required Intel
chipset support by choos-
ing “Auto Installation” or
you can do all installations
manually by choosing
Manual Installation. Either
way, you must install the
Intel chipset support be-
fore you install anything
else.
Power Installer:
Main Screen
Click on the model name
for this board in the
Socket 478 section.
Note:
The screen illustrations in
this section are for the
mP4G. The mP4GL section
has the same items.
