mP4G/mP4GL Motherboard
User’s Manual
5•18
PnP/PCI Configurations
Section Function
Configures Plug and Play and other PCI bus settings.
Default & Autodetected Settings
The default is for the BIOS to control these functions.
Setting Options & Constraints
If you have a problem after you install an expansion card,
set “Reset Configuration Data” to Enabled to rewrite the
ESCD.
Don’t change the resource settings, they’re set to be
handled automatically by the BIOS. While you can set
them manually, there shouldn’t be any need to do so.
The PCI/VGA Palette Snoop item is for PCI display cards
that have a problem displaying a screen image properly
at startup. You should not need to use this feature since
the onboard display is the primary display and if you
disable it, the AGP slot will be primary on the mP4G.

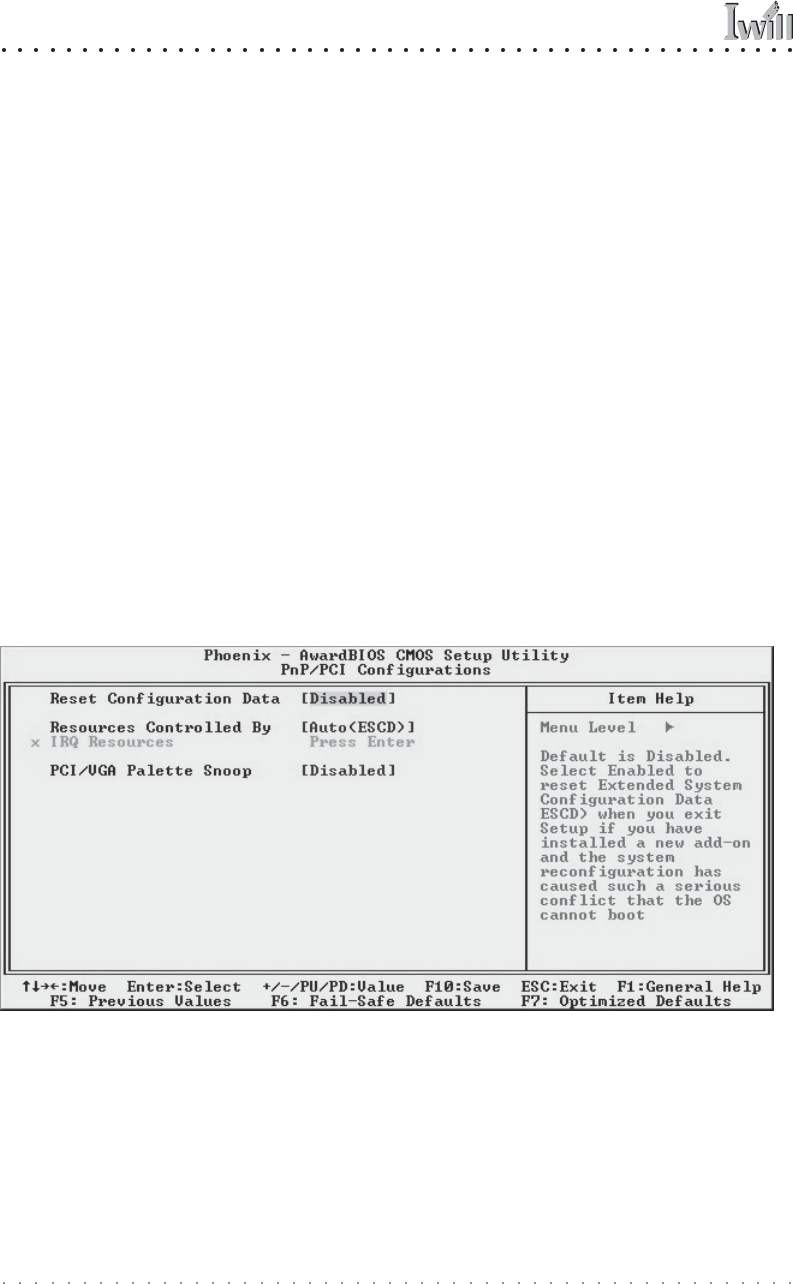

CMOS Setup Utility – PnP/PCI Configurations
