7 Handling
When assembling an Intel® Edison compute module to an Arduino* board, handle the Intel® Edison compute
module by the PCB edges. Avoid holding or exerting pressure to the shields. To mate the Intel® Edison compute
module to the Arduino* board, apply pressure directly above the connector and to the left corner, as shown in
Figure 8.

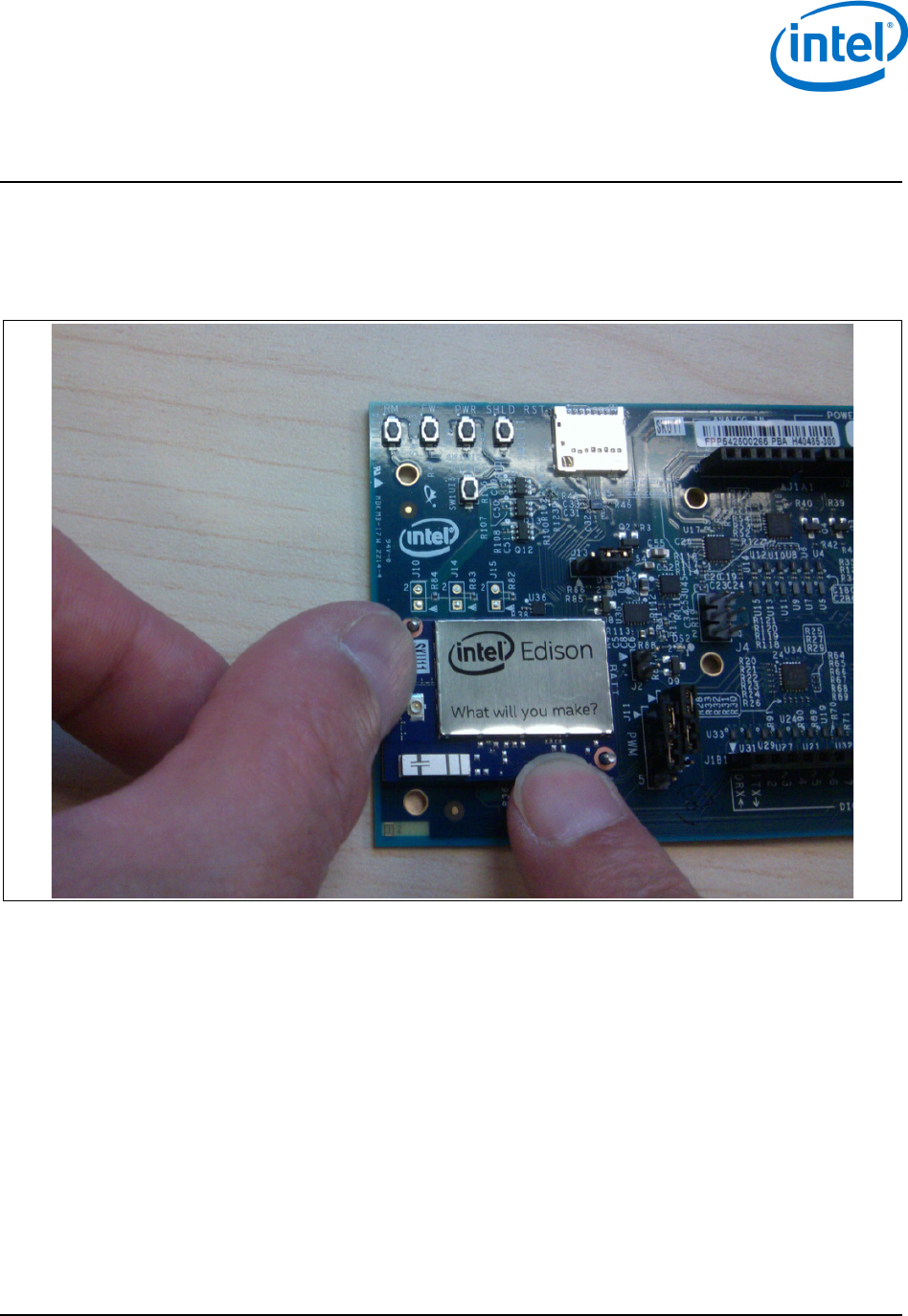

Figure 8 Inserting an Intel® Edison compute module
§
