Guidelines

Thermal Mechanical Design
34 Dual-Core Intel
®
Xeon
®
Processor 7000 Sequence Thermal /Mechanical Guidelines
Please refer to Appendix A for more detailed mechanical drawings of the CEK spring. Also, the
baseboard keepout requirements shown in Appendix A must be met to use this CEK spring design.
§

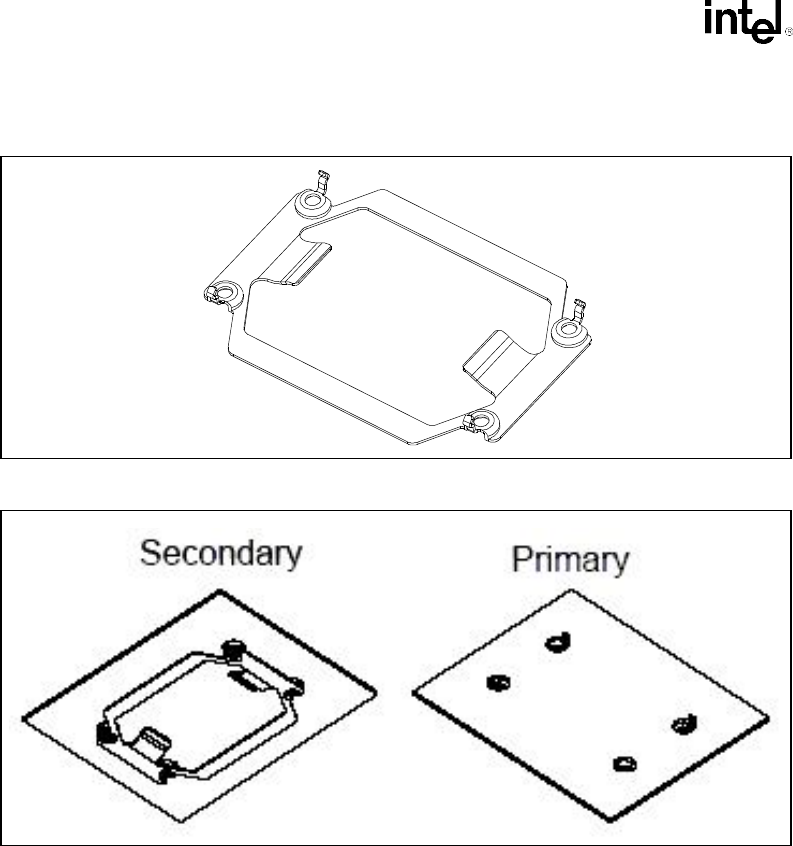

Figure 2-14. CEK Spring Isometric View
Figure 2-15. Isometric View of CEK Spring Attachment to the Base Board
