2.2.2.6 Front Panel USB 2.0 Headers
Figure 12 is a connection diagram for the front panel USB 2.0 headers.
NOTE
• The +5 V DC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.

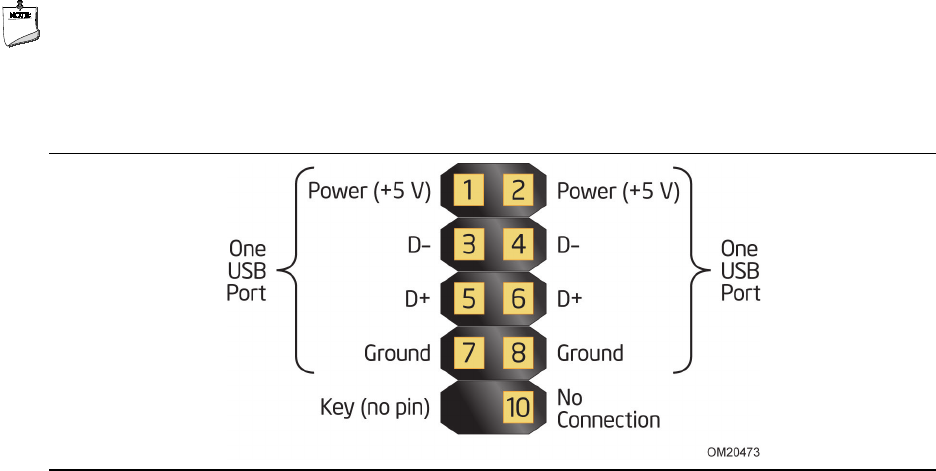

Figure 12. Connection Diagram for Front Panel USB 2.0 Headers
