Intel Desktop Board DQ57TML Product Guide
84
China RoHS
Intel Desktop Board DQ57TML is a China RoHS-compliant product.
The China Ministry of Information Industry (MII) stipulates that a material Self
Declaration Table (SDT) must be included in a product’s user documentation. The SDT
for Intel Desktop Board DQ57TML is shown in Figure 32.

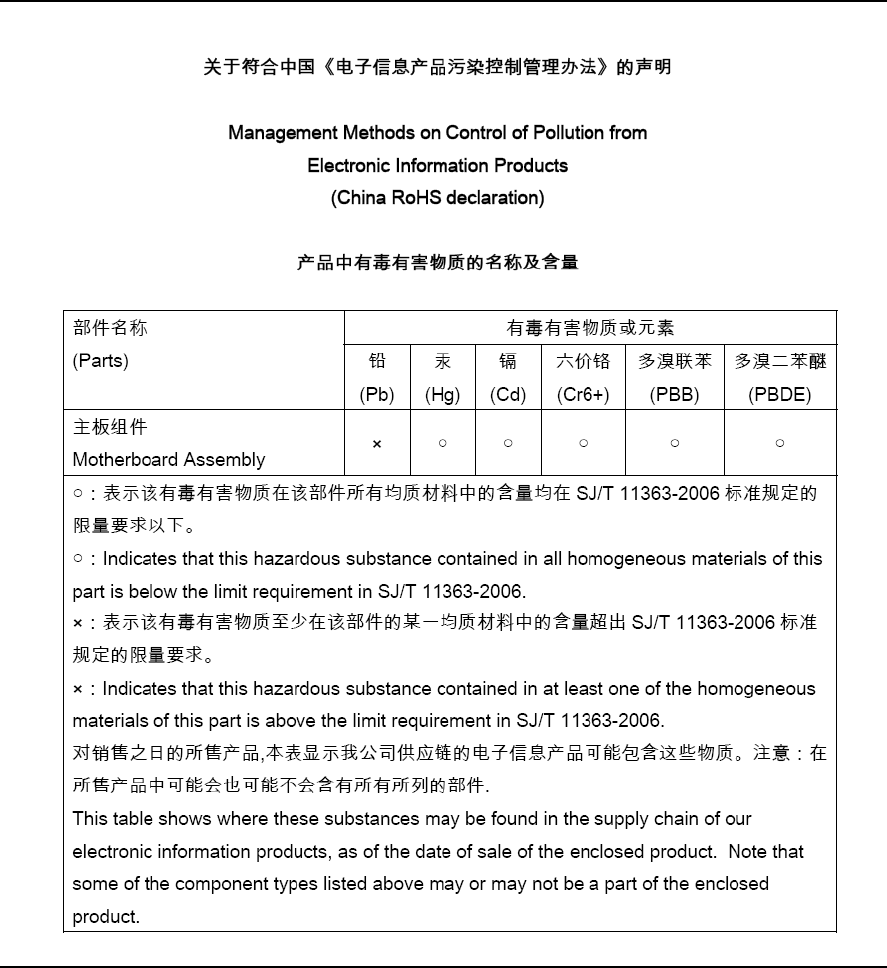

Figure 32. Intel Desktop Board DQ57TML China RoHS Material
Self Declaration Table
