Installing and Replacing Desktop Board Components
61
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 28 shows the location of the chassis fan headers.

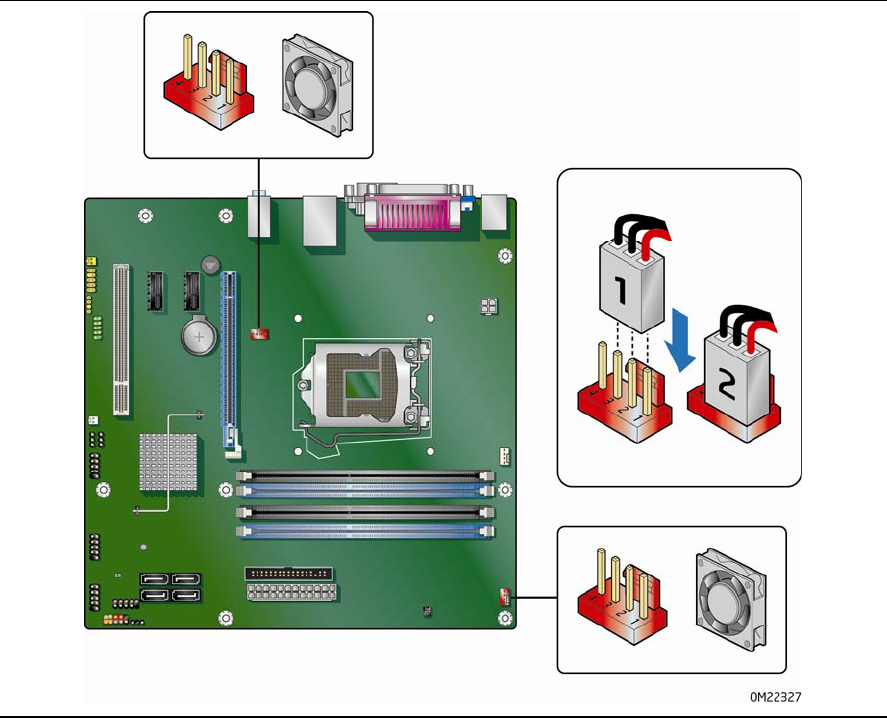

Figure 28. Location of the Chassis Fan Headers
