Connecting the SATA Drive Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 35.
2. Attach one end
of the SATA cable to one of the SATA connectors on the board
(Figure 23, A) and attach the other end of the
cable to the
SATA drive
(Figure 23, B).

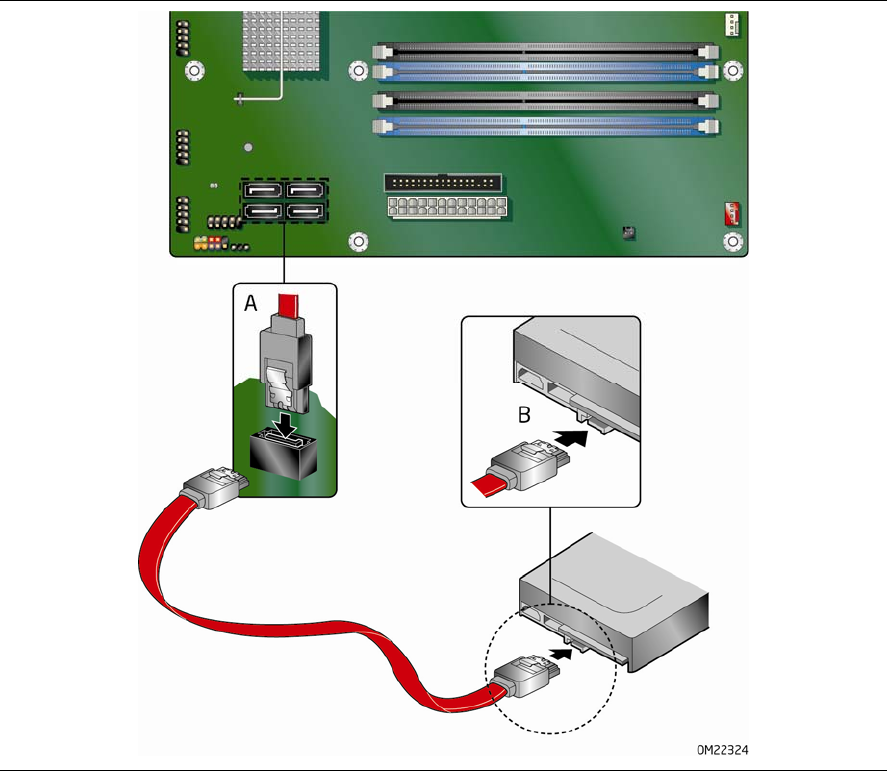

Figure 23. Connecting a SATA Cable
