Installing and Replacing Desktop Board Components
39
Installing and Removing a Processor
Instructions on how to install the processor on the Desktop Board are given below.
Installing a Processor
CAUTION
Before installing or removing a processor, make sure the AC power has been removed
by unplugging the power cord from the computer; the standby power LED should not
be lit (see Figure 5 on page 32). Failure to do so could damage the processor and the
board.
T
o in
stall a processor, follow these instructions:
1. Observe the precautions in "Before You Begin" on page 35.
2. Un
lat
ch the socket lever by pushing the lever down and away from the socket
(Figure 8, A and B).

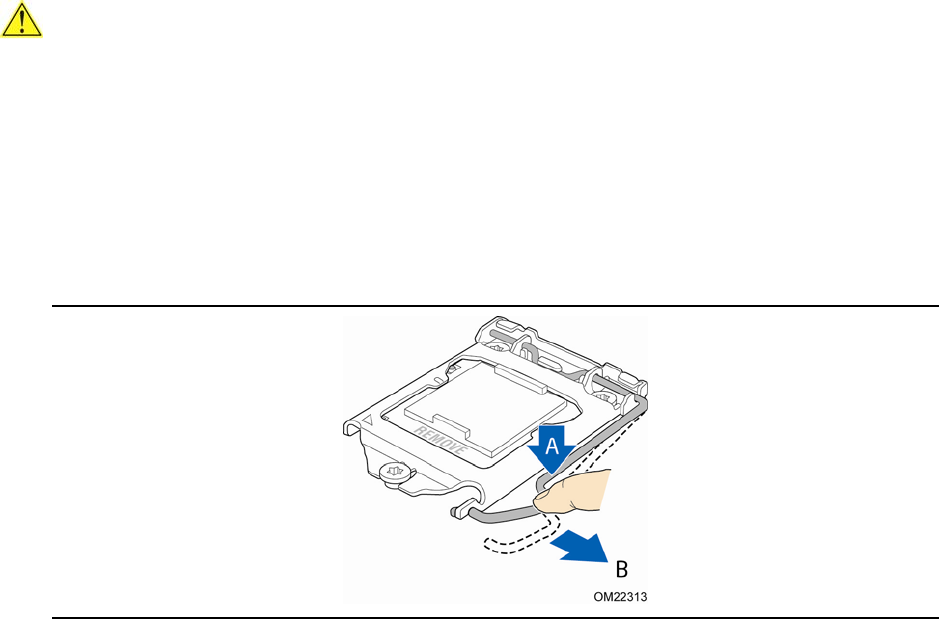

Figure 8. Unlatch the Socket Lever
