2.2.1 Back Panel Connectors

Figure 10 shows the location of the back panel connectors for the board.

Item Description

A Back-to-BIOS button

B S/PDIF in (optical)

C S/PDIF out (optical)

D USB ports

E IEEE 1394a connector

F USB ports

G LAN

H USB ports

I Surround left/right channel audio out

J Side Surround

K Center channel and LFE (subwoofer) audio out

L Audio line in/(Side Surround) audio out

M Front left/right channel audio out/Two channel audio line out

N Mic in

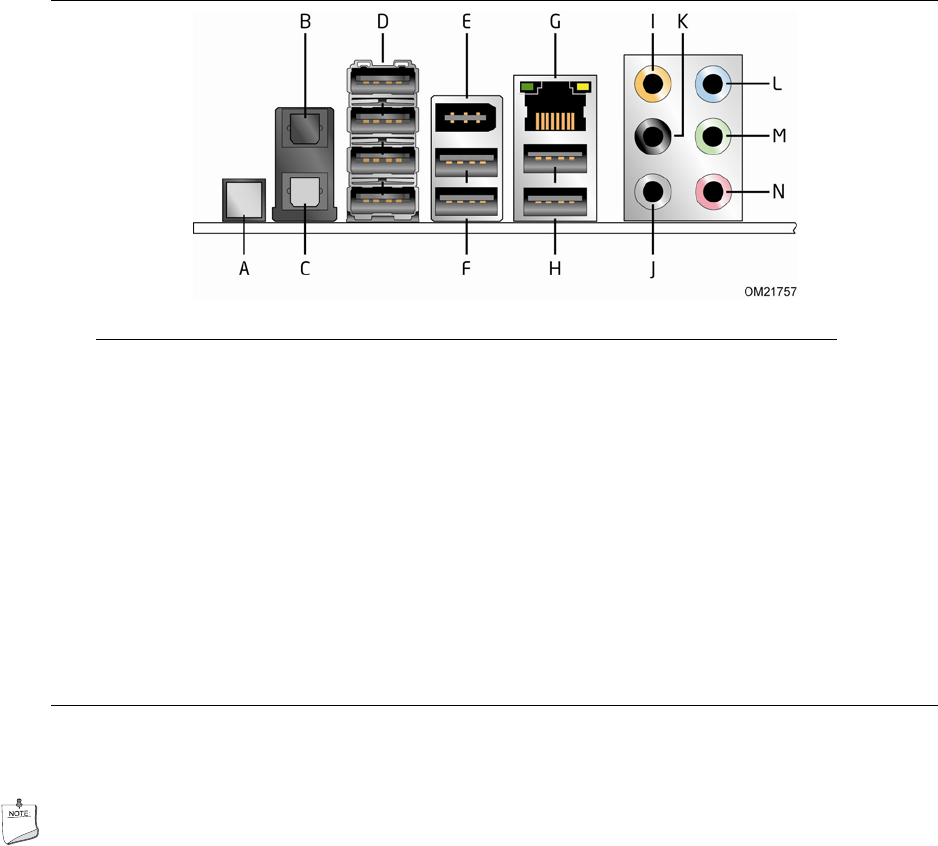

Figure 10. Back Panel Connectors

NOTE

The back panel audio line out connector is designed to power headphones or amplified

speakers only. Poor audio quality occurs if passive (non-amplified) speakers are

connected to this output.
