1.11.4 Thermal Monitoring

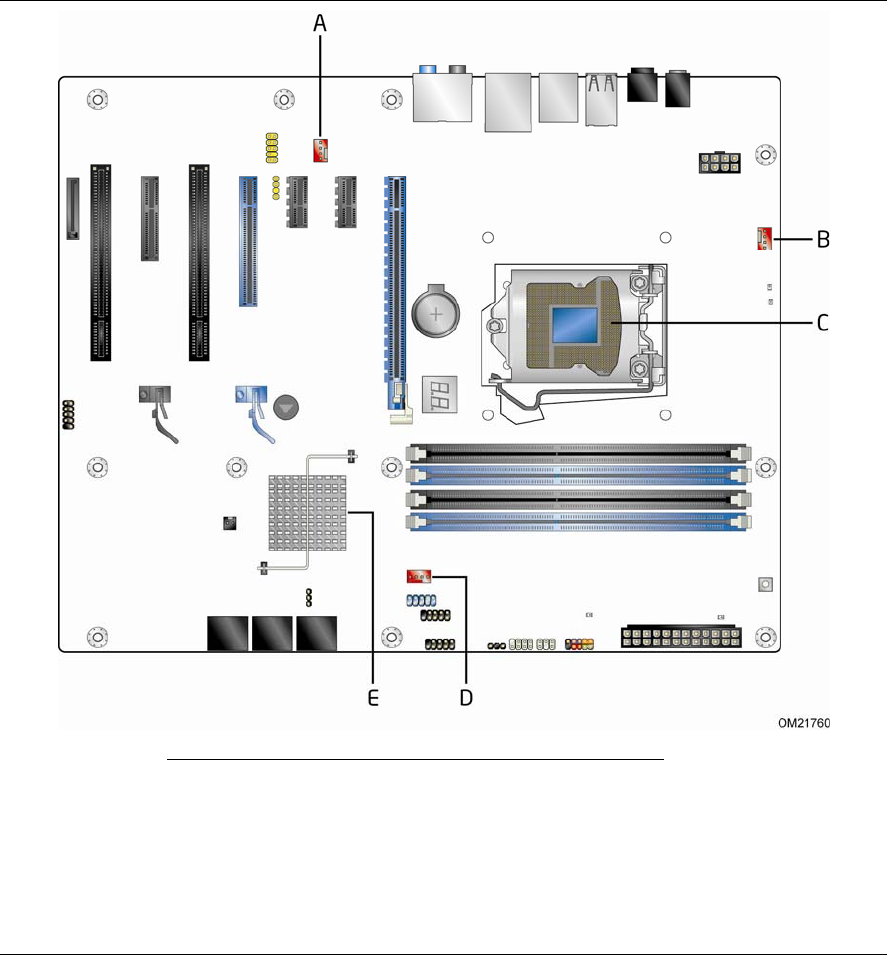

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Processor fan header
C Thermal diode, located on processor die
D Front chassis fan header
E Thermal diode, located on the Intel P55 Express
Chipset
F Auxiliary fan header
Figure 6. Thermal Sensors and Fan Headers
